Step1: Product
Vishay Sprague M39003/09-2046/HSD

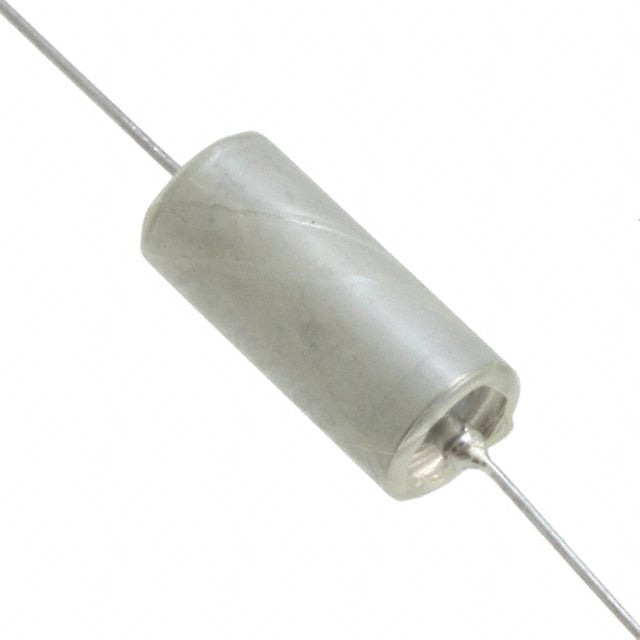

Image shown is a representation only
Manufacturer
Manufacturer No
M39003/09-2046/HSD
Package
Axial
Packaging
Bulk
Description
CAP TANT 68UF 10% 20V AXIAL
Detailed Description
68 µF Hermetically Sealed Tantalum Capacitors 20 V Axial 95mOhm
DataSheet
Mfr
Vishay Sprague
Type
Hermetically Sealed
Grade
Military
Series
CSR21
Features
High Reliability
Packaging
Bulk
Tolerance
±10%
Capacitance
68 µF
Part Status
Active
Failure Rate
B (0.1%)
Mounting Type
Through Hole
Qualification
MIL-PRF-39003/9
Package / Case
Axial
Voltage - Rated
20 V
Size / Dimension
0.351" Dia x 0.786" L (8.92mm x 19.96mm)
Base Product Number
M39003/09
Operating Temperature
-55°C ~ 125°C
Manufacturer Size Code
D
ESR (Equivalent Series Resistance)
95mOhm
| Attribute | Value |
|---|---|
| Mfr | Vishay Sprague |
| Type | Hermetically Sealed |
| Grade | Military |
| Series | CSR21 |
| Features | High Reliability |
| Packaging | Bulk |
| Tolerance | ±10% |
| Capacitance | 68 µF |
| Part Status | Active |
| Failure Rate | B (0.1%) |
| Mounting Type | Through Hole |
| Qualification | MIL-PRF-39003/9 |
| Package / Case | Axial |
| Voltage - Rated | 20 V |
| Size / Dimension | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) |
| Base Product Number | M39003/09 |
| Operating Temperature | -55°C ~ 125°C |
| Manufacturer Size Code | D |
| ESR (Equivalent Series Resistance) | 95mOhm |
