Step1: Product

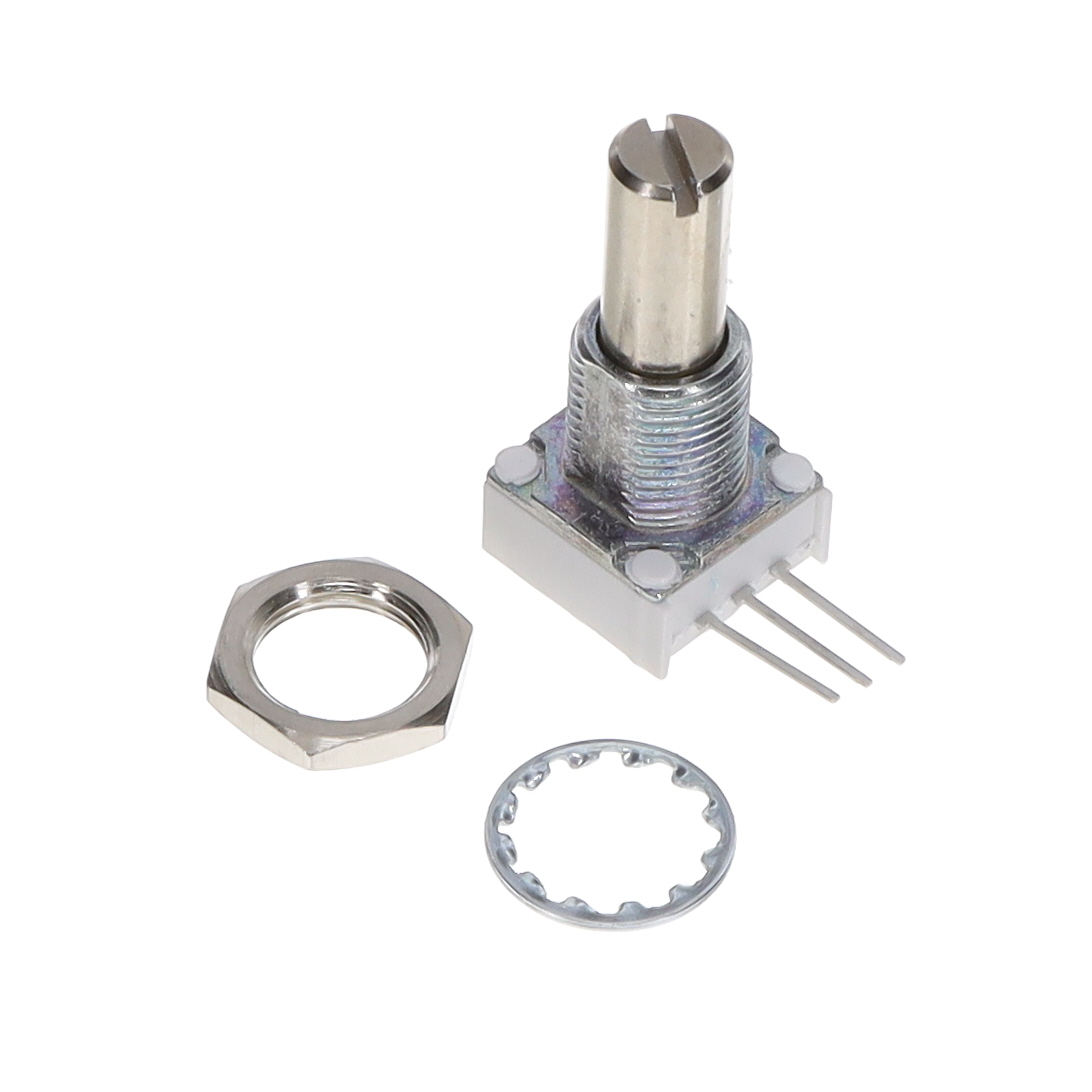

Vishay Spectrol 249FGJS0XB25104KA
Image shown is a representation only
Manufacturer
Manufacturer No
249FGJS0XB25104KA
Packaging
Box
Description
POT 100K OHM 0.9W CERMET LINEAR
Detailed Description
100k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 0.9W PC Pins
DataSheet
Taper
Linear
Series
249
Features
Sealed
Rotation
295°
Packaging
Box
Tolerance
±10%
Part Status
Active
Size - Body
Square - 0.500" x 0.500" Face (12.70mm x 12.70mm)
Manufacturer
Vishay Spectrol
Actuator Type
Slotted
Mounting Type
Panel Mount
Power (Watts)
0.9W
Bushing Thread
3/8-32
Actuator Length
0.875" (22.23mm)
Adjustment Type
Side Adjustment
Built in Switch
None
Number of Gangs
1
Number of Turns
1.0
Actuator Diameter
0.250" (6.35mm)
Resistance (Ohms)
100k
Termination Style
PC Pins
Resistive Material
Cermet
Temperature Coefficient
±150ppm/°C
| Attribute | Value |
|---|---|
| Taper | Linear |
| Series | 249 |
| Features | Sealed |
| Rotation | 295° |
| Packaging | Box |
| Tolerance | ±10% |
| Part Status | Active |
| Size - Body | Square - 0.500" x 0.500" Face (12.70mm x 12.70mm) |
| Manufacturer | Vishay Spectrol |
| Actuator Type | Slotted |
| Mounting Type | Panel Mount |
| Power (Watts) | 0.9W |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.875" (22.23mm) |
| Adjustment Type | Side Adjustment |
| Built in Switch | None |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
| Actuator Diameter | 0.250" (6.35mm) |
| Resistance (Ohms) | 100k |
| Termination Style | PC Pins |
| Resistive Material | Cermet |
| Temperature Coefficient | ±150ppm/°C |
