Step1: Product
Vishay Siliconix DG534ADN

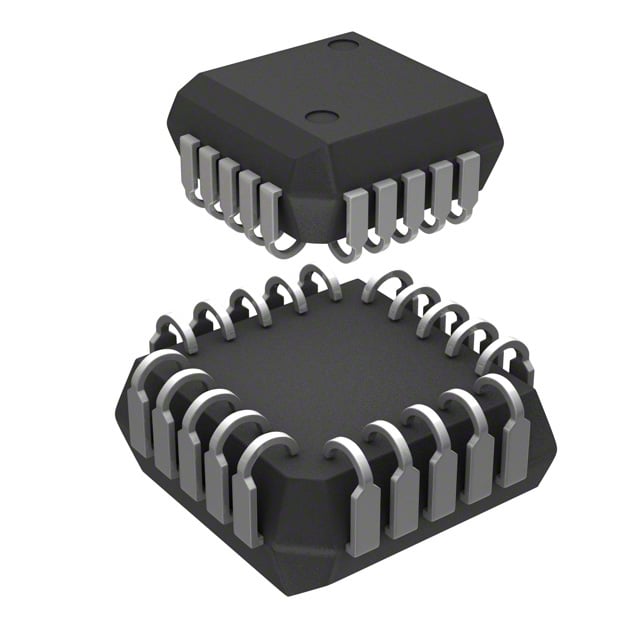

Image shown is a representation only
Manufacturer
Manufacturer No
DG534ADN
Package
20-LCC (J-Lead)
Packaging
Tube
Description
IC AMP/VIDEO/MUX LP 4/8CH 20PLCC
Detailed Description
Ultrasound, Video Switch IC 2 Channel 20-PLCC (9x9)
Datasheet
Features
T-Switch Configuration
Packaging
Tube
Applications
Ultrasound, Video
Manufacturer
Vishay Siliconix
Mounting Type
Surface Mount
-3db Bandwidth
500MHz
Package / Case
20-LCC (J-Lead)
Switch Circuit
SPDT
Number of Channels
2
Base Product Number
DG534
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
20-PLCC (9x9)
On-State Resistance (Max)
90Ohm
Voltage - Supply, Single (V+)
10V ~ 21V
Multiplexer/Demultiplexer Circuit
2:1
| Attribute | Value |
|---|---|
| Features | T-Switch Configuration |
| Packaging | Tube |
| Applications | Ultrasound, Video |
| Manufacturer | Vishay Siliconix |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 500MHz |
| Package / Case | 20-LCC (J-Lead) |
| Switch Circuit | SPDT |
| Number of Channels | 2 |
| Base Product Number | DG534 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 20-PLCC (9x9) |
| On-State Resistance (Max) | 90Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 21V |
| Multiplexer/Demultiplexer Circuit | 2:1 |
