Step1: Product

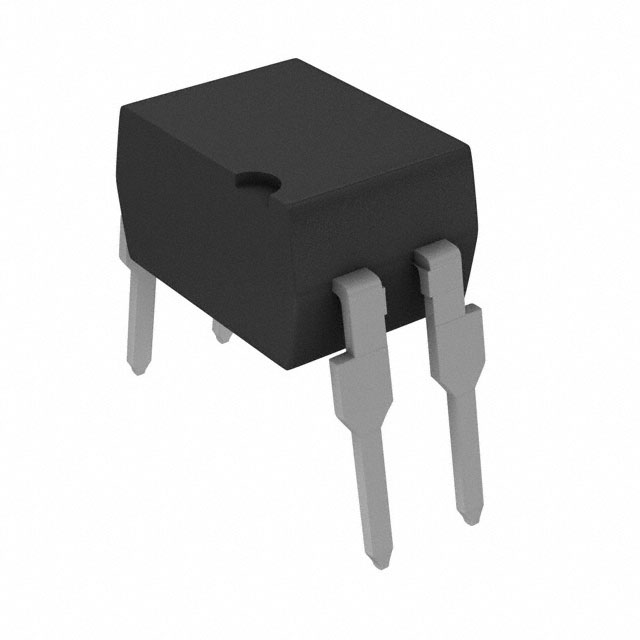

Vishay Semiconductor Opto Division VOT8121AD
Image shown is a representation only
Manufacturer
Manufacturer No
VOT8121AD
Package
4-DIP (0.300", 7.62mm)
Packaging
Tube
Description
OPTOISOLTR 5.3KV TRIAC 1CH 4-DIP
Detailed Description
Optoisolator Triac Output 5300Vrms 1 Channel 4-DIP
DataSheet
Packaging
Tube
Output Type
Triac
Part Status
Active
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Through Hole
Package / Case
4-DIP (0.300", 7.62mm)
Approval Agency
CQC, cUL, UL, VDE
Number of Channels
1
Static dV/dt (Min)
1kV/µs
Base Product Number
VOT8121
Current - Hold (Ih)
400µA (Typ)
Voltage - Isolation
5300Vrms
Voltage - Off State
800 V
Operating Temperature
-55°C ~ 110°C
Zero Crossing Circuit
No
Supplier Device Package
4-DIP
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
50 mA
Current - LED Trigger (Ift) (Max)
10mA
Current - On State (It (RMS)) (Max)
100 mA
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Output Type | Triac |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Approval Agency | CQC, cUL, UL, VDE |
| Number of Channels | 1 |
| Static dV/dt (Min) | 1kV/µs |
| Base Product Number | VOT8121 |
| Current - Hold (Ih) | 400µA (Typ) |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 800 V |
| Operating Temperature | -55°C ~ 110°C |
| Zero Crossing Circuit | No |
| Supplier Device Package | 4-DIP |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
