Step1: Product
Vishay Semiconductor Opto Division VO2630-X006

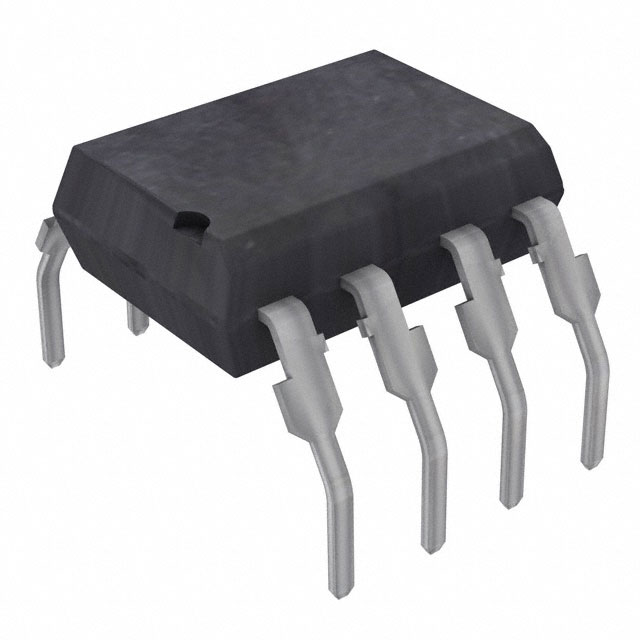

Image shown is a representation only
Manufacturer
Manufacturer No
VO2630-X006
Package
8-DIP (0.400", 10.16mm)
Packaging
Tube
Description
OPTOISO 5.3KV 2CH OPN DRAIN 8DIP
Detailed Description
Logic Output Optoisolator 10MBd Open Drain 5300Vrms 2 Channel 1kV/µs CMTI 8-DIP
DataSheet
Data Rate
10MBd
Packaging
Tube
Input Type
DC
Output Type
Open Drain
Part Status
Obsolete
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Through Hole
Package / Case
8-DIP (0.400", 10.16mm)
Voltage - Supply
4.5V ~ 5.5V
Number of Channels
2
Base Product Number
VO263
Voltage - Isolation
5300Vrms
Operating Temperature
-40°C ~ 100°C
Inputs - Side 1/Side 2
2/0
Rise / Fall Time (Typ)
23ns, 7ns
Supplier Device Package
8-DIP
Current - Output / Channel
50 mA
Voltage - Forward (Vf) (Typ)
1.4V
Current - DC Forward (If) (Max)
15mA
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Common Mode Transient Immunity (Min)
1kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 10MBd |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Open Drain |
| Part Status | Obsolete |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Channels | 2 |
| Base Product Number | VO263 |
| Voltage - Isolation | 5300Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 23ns, 7ns |
| Supplier Device Package | 8-DIP |
| Current - Output / Channel | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 15mA |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Common Mode Transient Immunity (Min) | 1kV/µs |
