Step1: Product
Vishay Semiconductor Opto Division TCMD1000

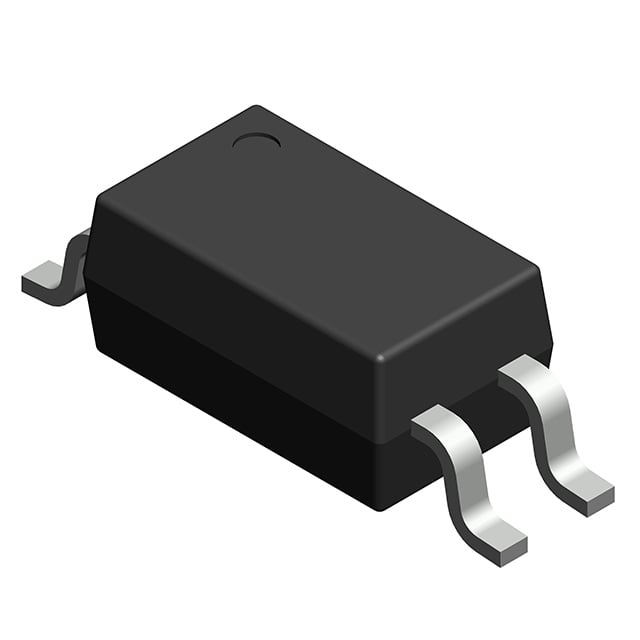

Image shown is a representation only
Manufacturer
Manufacturer No
TCMD1000
Quantity
7,881
Availability
In Stock
Package
4-SOIC (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISOLTR 3.75KV 1CH DARL 4-SOP
Detailed Description
Optoisolator Darlington Output 3750Vrms 1 Channel 4-SOP
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
DC
Output Type
Darlington
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Surface Mount
Package / Case
4-SOIC (0.173", 4.40mm Width)
Number of Channels
1
Base Product Number
TCMD1000
Voltage - Isolation
3750Vrms
Vce Saturation (Max)
1V
Operating Temperature
-40°C ~ 100°C
Rise / Fall Time (Typ)
300µs, -
Voltage - Output (Max)
35V
Supplier Device Package
4-SOP
Current - Output / Channel
80mA
Current Transfer Ratio (Min)
600% @ 1mA
Voltage - Forward (Vf) (Typ)
1.25V
Turn On / Turn Off Time (Typ)
-, 250µs
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | DC |
| Output Type | Darlington |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Number of Channels | 1 |
| Base Product Number | TCMD1000 |
| Voltage - Isolation | 3750Vrms |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 300µs, - |
| Voltage - Output (Max) | 35V |
| Supplier Device Package | 4-SOP |
| Current - Output / Channel | 80mA |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Turn On / Turn Off Time (Typ) | -, 250µs |
| Current - DC Forward (If) (Max) | 60 mA |
