Step1: Product
Vishay Huntington Electric Inc. AH0756R800JE66

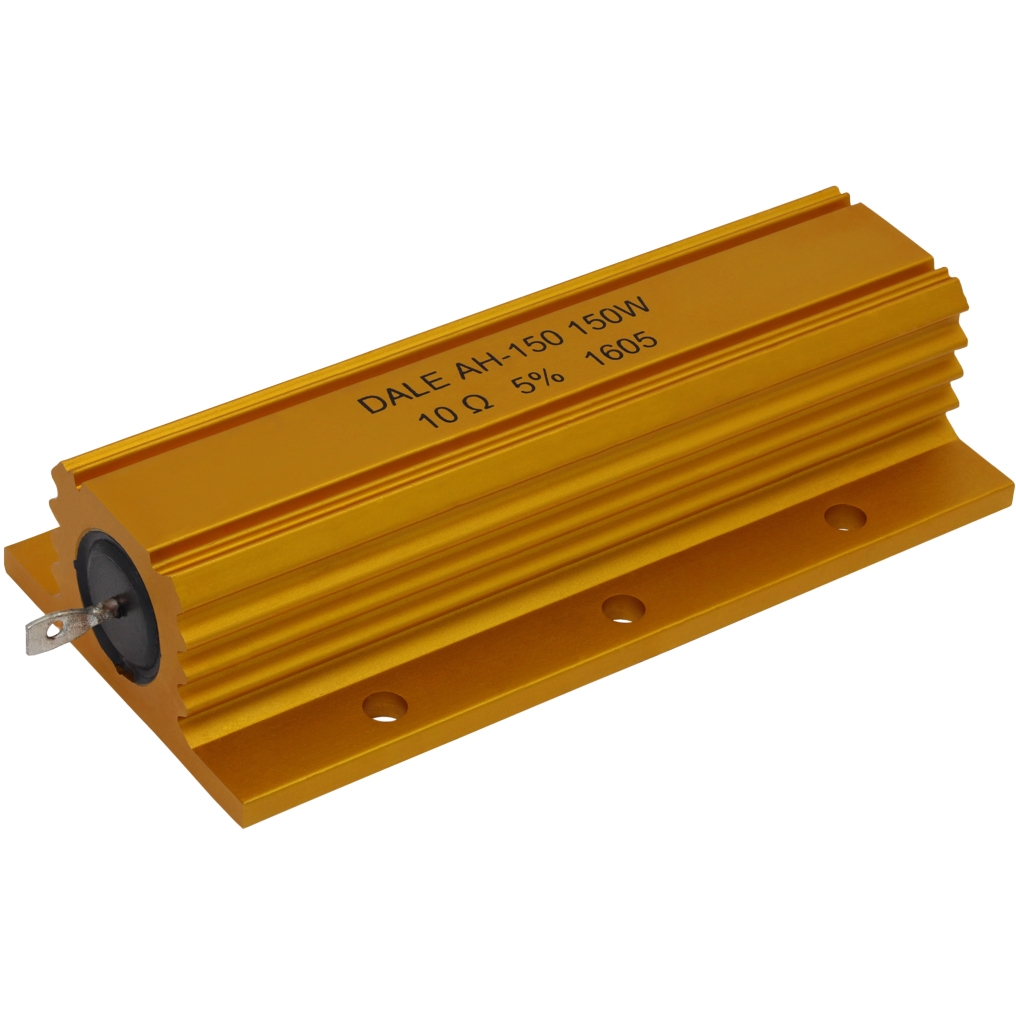

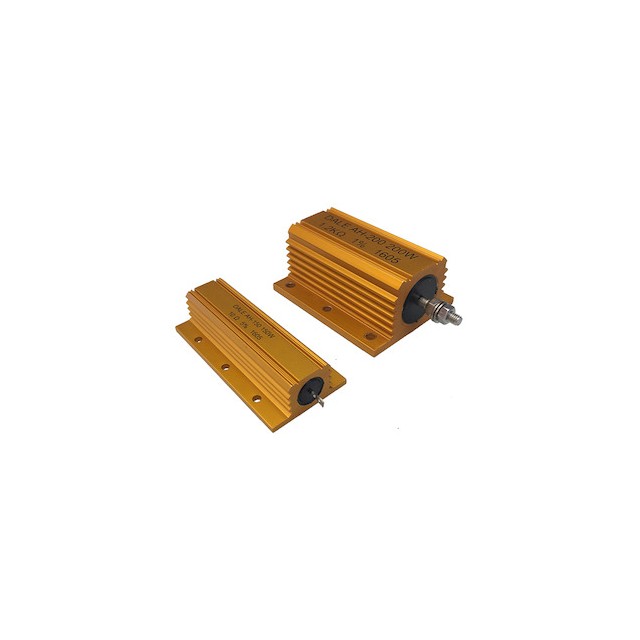

Image shown is a representation only
Manufacturer
Manufacturer No
AH0756R800JE66
Package
Axial, Box
Packaging
Bulk
Description
AH075 6.8 5% E66 E3
Detailed Description
6.8 Ohms ±5% 75W Wirewound Chassis Mount Resistor
DataSheet
Mfr
Vishay Huntington Electric Inc.
Series
AH
Packaging
Bulk
Tolerance
±5%
Lead Style
Solder Lugs
Resistance
6.8 Ohms
Composition
Wirewound
Part Status
Active
Power (Watts)
75W
Package / Case
Axial, Box
Mounting Feature
Flanges
Size / Dimension
1.969" L x 1.890" W (50.00mm x 48.00mm)
Coating, Housing Type
Aluminum
Height - Seated (Max)
1.024" (26.00mm)
Operating Temperature
-25°C ~ 250°C
Temperature Coefficient
±100ppm/°C
| Attribute | Value |
|---|---|
| Mfr | Vishay Huntington Electric Inc. |
| Series | AH |
| Packaging | Bulk |
| Tolerance | ±5% |
| Lead Style | Solder Lugs |
| Resistance | 6.8 Ohms |
| Composition | Wirewound |
| Part Status | Active |
| Power (Watts) | 75W |
| Package / Case | Axial, Box |
| Mounting Feature | Flanges |
| Size / Dimension | 1.969" L x 1.890" W (50.00mm x 48.00mm) |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Operating Temperature | -25°C ~ 250°C |
| Temperature Coefficient | ±100ppm/°C |
