Step1: Product
Vishay General Semiconductor - Diodes Division VS-25RIA120

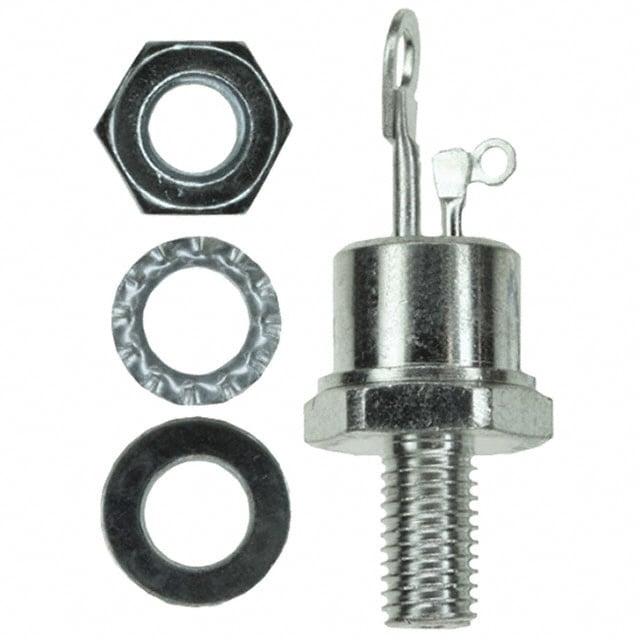

Image shown is a representation only
Manufacturer
Manufacturer No
VS-25RIA120
Quantity
6
Availability
In Stock
Package
TO-208AA, TO-48-3, Stud
Packaging
Bulk
Description
SCR 1.2KV 40A TO-208AA (TO-48)
Detailed Description
SCR 1.2 kV 40 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
DataSheet
SCR Type
Standard Recovery
Packaging
Bulk
Part Status
Active
Manufacturer
Vishay General Semiconductor - Diodes Division
Mounting Type
Chassis, Stud Mount
Package / Case
TO-208AA, TO-48-3, Stud
Base Product Number
25RIA120
Voltage - Off State
1.2 kV
Operating Temperature
-65°C ~ 125°C
Supplier Device Package
TO-208AA (TO-48)
Current - Hold (Ih) (Max)
130 mA
Current - Off State (Max)
10 mA
Voltage - On State (Vtm) (Max)
1.7 V
Current - Gate Trigger (Igt) (Max)
60 mA
Current - On State (It (AV)) (Max)
25 A
Voltage - Gate Trigger (Vgt) (Max)
2 V
Current - On State (It (RMS)) (Max)
40 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
420A, 440A
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | TO-208AA, TO-48-3, Stud |
| Base Product Number | 25RIA120 |
| Voltage - Off State | 1.2 kV |
| Operating Temperature | -65°C ~ 125°C |
| Supplier Device Package | TO-208AA (TO-48) |
| Current - Hold (Ih) (Max) | 130 mA |
| Current - Off State (Max) | 10 mA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - On State (It (AV)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 40 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 420A, 440A |
