Vishay General Semiconductor - Diodes Division SMCJ54A-E3/57T

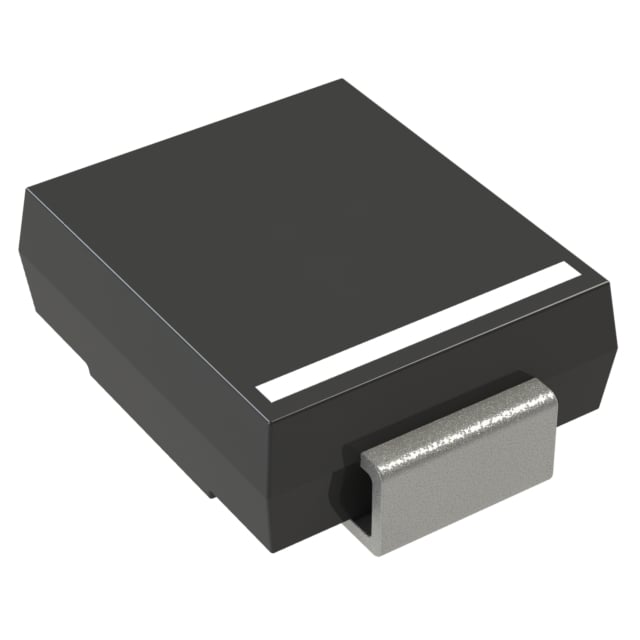

Image shown is a representation only
Manufacturer
Manufacturer No
SMCJ54A-E3/57T
Quantity
890
Availability
In Stock
Package
DO-214AB, SMC
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 54VWM 87.1VC DO214AB
Detailed Description
87.1V Clamp 17.2A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
DataSheet
Mfr
Vishay General Semiconductor - Diodes Division
Type
Zener
Series
TransZorb®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
DO-214AB, SMC
Power - Peak Pulse
1500W (1.5kW)
Base Product Number
SMCJ54
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Supplier Device Package
DO-214AB (SMCJ)
Unidirectional Channels
1
Voltage - Breakdown (Min)
60V
Voltage - Clamping (Max) @ Ipp
87.1V
Voltage - Reverse Standoff (Typ)
54V
Current - Peak Pulse (10/1000µs)
17.2A
| Attribute | Value |
|---|---|
| Mfr | Vishay General Semiconductor - Diodes Division |
| Type | Zener |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Power - Peak Pulse | 1500W (1.5kW) |
| Base Product Number | SMCJ54 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | DO-214AB (SMCJ) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 87.1V |
| Voltage - Reverse Standoff (Typ) | 54V |
| Current - Peak Pulse (10/1000µs) | 17.2A |
