Vishay General Semiconductor - Diodes Division SMBJ36CAHE3_B/H

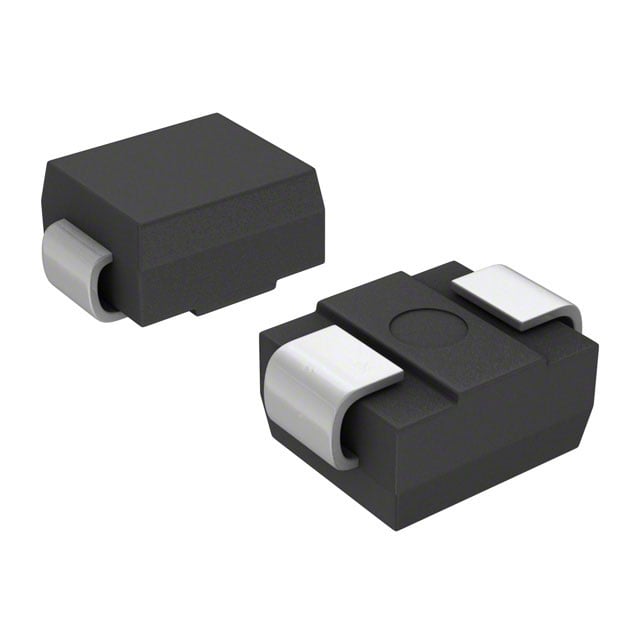

Image shown is a representation only
Manufacturer
Manufacturer No
SMBJ36CAHE3_B/H
Quantity
11250
Availability
In Stock
Package
DO-214AA, SMB
Packaging
Tape & Reel (TR)
Description
TVS DIODE 36VWM 58.1VC DO214AA
Detailed Description
58.1V Clamp 10.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
DataSheet
Mfr
Vishay General Semiconductor - Diodes Division
Type
Zener
Grade
Automotive
Series
TransZorb®
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
Telecom
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
DO-214AA, SMB
Power - Peak Pulse
600W
Base Product Number
SMBJ36
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Supplier Device Package
DO-214AA (SMB)
Voltage - Breakdown (Min)
40V
Voltage - Clamping (Max) @ Ipp
58.1V
Voltage - Reverse Standoff (Typ)
36V
Current - Peak Pulse (10/1000µs)
10.3A
| Attribute | Value |
|---|---|
| Mfr | Vishay General Semiconductor - Diodes Division |
| Type | Zener |
| Grade | Automotive |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | Telecom |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | DO-214AA, SMB |
| Power - Peak Pulse | 600W |
| Base Product Number | SMBJ36 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Supplier Device Package | DO-214AA (SMB) |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Voltage - Reverse Standoff (Typ) | 36V |
| Current - Peak Pulse (10/1000µs) | 10.3A |
