Vishay General Semiconductor - Diodes Division SE100PWTJ-M3/I

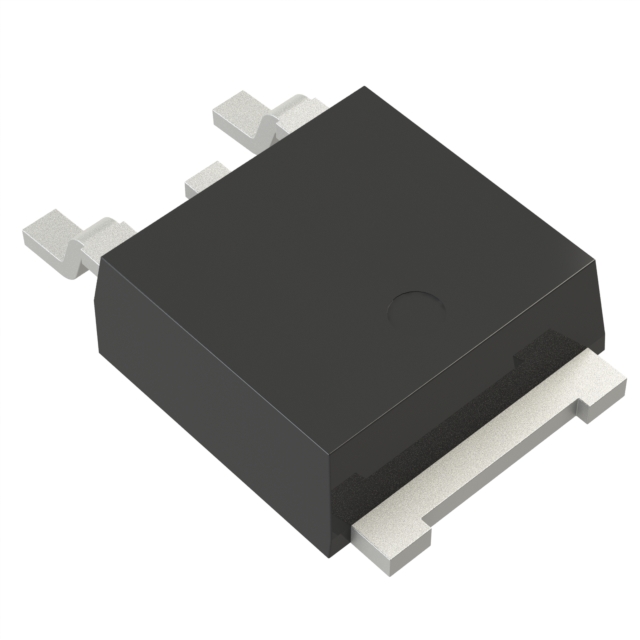

Image shown is a representation only
Manufacturer
Manufacturer No
SE100PWTJ-M3/I
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE STD 600V 2.7A SLIMDPAK
Detailed Description
Diode 600 V 2.7A Surface Mount SlimDPAK
DataSheet
Mfr
Vishay General Semiconductor - Diodes Division
Grade
Automotive
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Standard
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Capacitance @ Vr, F
78pF @ 4V, 1MHz
Supplier Device Package
SlimDPAK
Reverse Recovery Time (trr)
2.6 µs
Current - Reverse Leakage @ Vr
20 µA @ 600 V
Voltage - DC Reverse (Vr) (Max)
600 V
Current - Average Rectified (Io)
2.7A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.14 V @ 10 A
| Attribute | Value |
|---|---|
| Mfr | Vishay General Semiconductor - Diodes Division |
| Grade | Automotive |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Capacitance @ Vr, F | 78pF @ 4V, 1MHz |
| Supplier Device Package | SlimDPAK |
| Reverse Recovery Time (trr) | 2.6 µs |
| Current - Reverse Leakage @ Vr | 20 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 2.7A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.14 V @ 10 A |
