Step1: Product
Vishay Dale O016O002CSPP3N0000

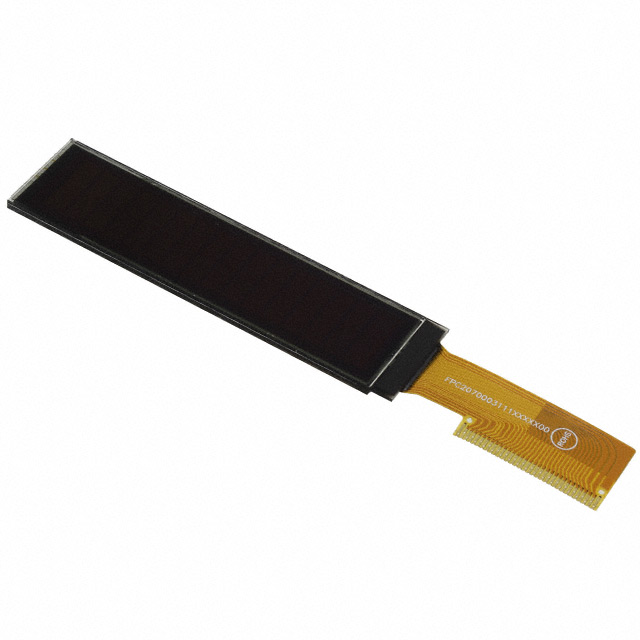

Image shown is a representation only
Manufacturer
Manufacturer No
O016O002CSPP3N0000
Packaging
Tray
Description
OLED MODULE 32DIG 16 X 2 PASSIVE
Detailed Description
Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit 68.50mm x 17.50mm x 2.05mm
DataSheet
Dot Size
0.57mm W x 0.67mm H
Interface
Parallel, 8-Bit
Packaging
Tray
Part Status
Active
Display Mode
Passive
Display Type
OLED
Manufacturer
Vishay Dale
Viewing Area
58.22mm L x 13.52mm W
Character Size
2.97mm H x 5.57mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Voltage - Supply
4.8V ~ 5.3V
Outline L x W x H
68.50mm x 17.50mm x 2.05mm
Number of Characters
32.0
Operating Temperature
-40°C ~ 80°C
| Attribute | Value |
|---|---|
| Dot Size | 0.57mm W x 0.67mm H |
| Interface | Parallel, 8-Bit |
| Packaging | Tray |
| Part Status | Active |
| Display Mode | Passive |
| Display Type | OLED |
| Manufacturer | Vishay Dale |
| Viewing Area | 58.22mm L x 13.52mm W |
| Character Size | 2.97mm H x 5.57mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 4.8V ~ 5.3V |
| Outline L x W x H | 68.50mm x 17.50mm x 2.05mm |
| Number of Characters | 32.0 |
| Operating Temperature | -40°C ~ 80°C |
