Step1: Product
Vishay Dale NH025R0500FC02

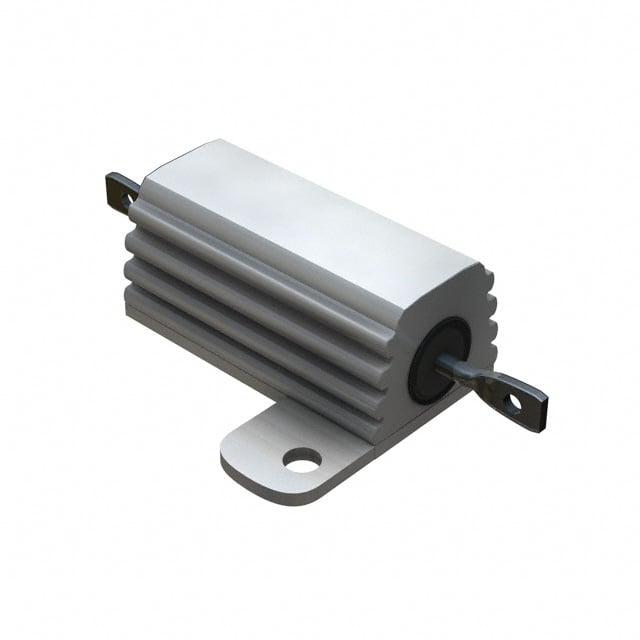

Image shown is a representation only
Manufacturer
Manufacturer No
NH025R0500FC02
Package
Axial, Box
Packaging
Bulk
Description
NH-25 .05 1% C02
Detailed Description
50 mOhms ±1% 25W Wirewound Chassis Mount Resistor
DataSheet
Mfr
Vishay Dale
Series
NH
Features
Moisture Resistant, Non-Inductive
Packaging
Bulk
Tolerance
±1%
Lead Style
Solder Lugs
Resistance
50 mOhms
Composition
Wirewound
Part Status
Active
Power (Watts)
25W
Package / Case
Axial, Box
Mounting Feature
Flanges
Size / Dimension
1.062" L x 1.080" W (26.97mm x 27.43mm)
Coating, Housing Type
Aluminum
Height - Seated (Max)
0.561" (14.25mm)
Operating Temperature
-55°C ~ 250°C
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Series | NH |
| Features | Moisture Resistant, Non-Inductive |
| Packaging | Bulk |
| Tolerance | ±1% |
| Lead Style | Solder Lugs |
| Resistance | 50 mOhms |
| Composition | Wirewound |
| Part Status | Active |
| Power (Watts) | 25W |
| Package / Case | Axial, Box |
| Mounting Feature | Flanges |
| Size / Dimension | 1.062" L x 1.080" W (26.97mm x 27.43mm) |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 0.561" (14.25mm) |
| Operating Temperature | -55°C ~ 250°C |
