Step1: Product

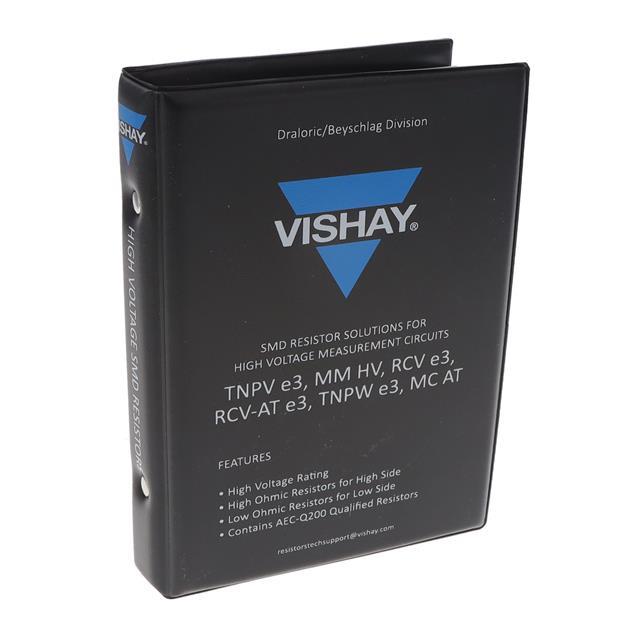

Vishay Dale LABHV01CHIPMELF
Image shown is a representation only
Manufacturer
Manufacturer No
LABHV01CHIPMELF
Packaging
Bulk
Description
LAB KIT HV CHIP MELF
Detailed Description
Thick Film, Thin Film Resistor Kit 1k ~ 100M Ohm ±0.1%, ±1%, ±5% Surface Mount 2400 Pieces (120 Values - 20 Each)
DataSheet
Series
MC AT, MM HV, RCV e3, RCV-AT e3, TNPV e3, TNPW e3
Kit Type
Thick Film, Thin Film
Quantity
2400 Pieces (120 Values - 20 Each)
Packaging
Bulk
Tolerance
±0.1%, ±1%, ±5%
Part Status
Active
Manufacturer
Vishay Dale
Mounting Type
Surface Mount
Packages Included
0603 ~ 2512 (1608 ~ 6432 Metric), MELF 0204, MELF 0207
Resistance (Ohms)
1k ~ 100M
| Attribute | Value |
|---|---|
| Series | MC AT, MM HV, RCV e3, RCV-AT e3, TNPV e3, TNPW e3 |
| Kit Type | Thick Film, Thin Film |
| Quantity | 2400 Pieces (120 Values - 20 Each) |
| Packaging | Bulk |
| Tolerance | ±0.1%, ±1%, ±5% |
| Part Status | Active |
| Manufacturer | Vishay Dale |
| Mounting Type | Surface Mount |
| Packages Included | 0603 ~ 2512 (1608 ~ 6432 Metric), MELF 0204, MELF 0207 |
| Resistance (Ohms) | 1k ~ 100M |
