Step1: Product

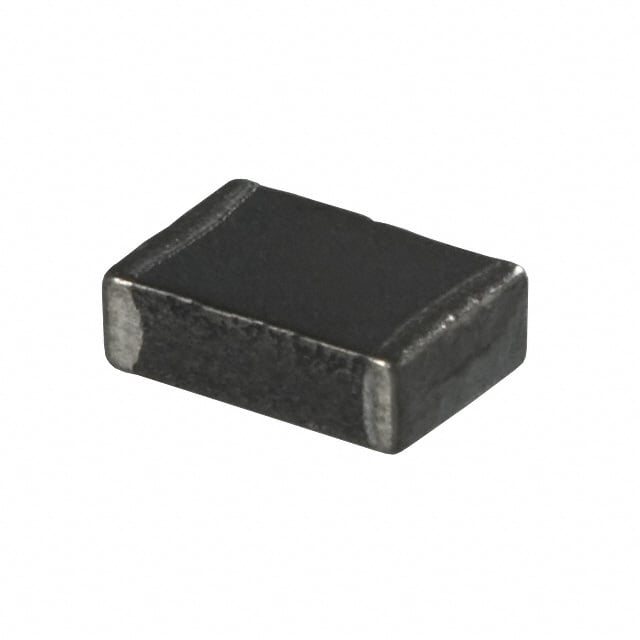

Vishay Dale ILHB1812ER121V
Image shown is a representation only
Manufacturer
Manufacturer No
ILHB1812ER121V
Quantity
2194
Availability
In Stock
Package
1812 (4532 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FERRITE BEAD 120 OHM 1812 1LN
Detailed Description
120 Ohms @ 100 MHz 1 Ferrite Bead 1812 (4532 Metric) 6A 20mOhm
DataSheet
Series
ILHB
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Height (Max)
0.069" (1.75mm)
Manufacturer
Vishay Dale
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric)
Number of Lines
1
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Current Rating (Max)
6A
Impedance @ Frequency
120 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
DC Resistance (DCR) (Max)
20mOhm
| Attribute | Value |
|---|---|
| Series | ILHB |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Height (Max) | 0.069" (1.75mm) |
| Manufacturer | Vishay Dale |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Number of Lines | 1 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Current Rating (Max) | 6A |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) (Max) | 20mOhm |
