Step1: Product

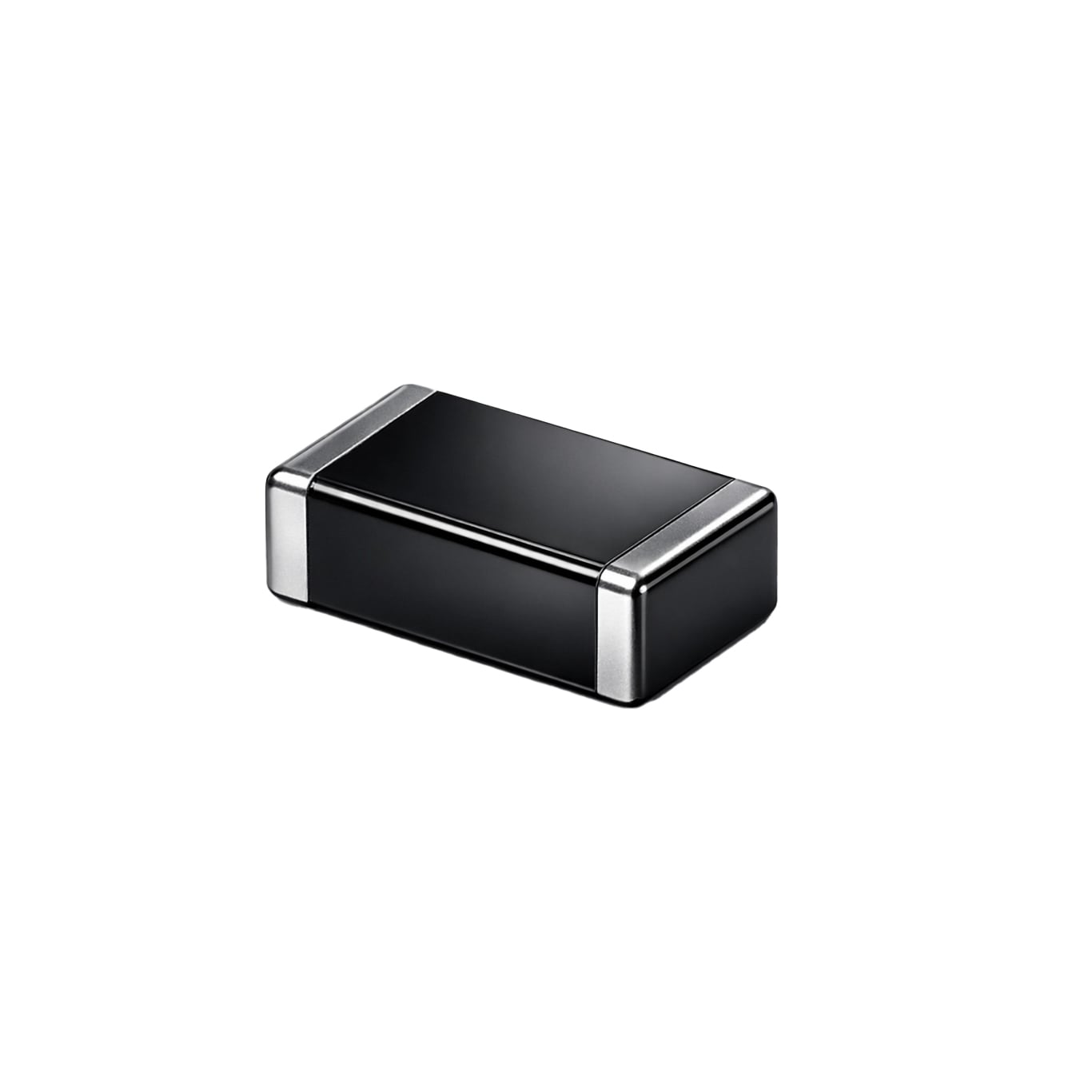

Vishay Dale ILHB0603ER750VHC31
Image shown is a representation only
Manufacturer
Manufacturer No
ILHB0603ER750VHC31
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR)
Description
FERRITE BEAD 75 OHM 0603 1LN
Detailed Description
75 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 1A 150mOhm
DataSheet
Series
ILHB
Ratings
AEC-Q200
Features
Automotive
Packaging
Tape & Reel (TR)
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.037" (0.95mm)
Manufacturer
Vishay Dale
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Lines
1
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Current Rating (Max)
1A
Impedance @ Frequency
75 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
DC Resistance (DCR) (Max)
150mOhm
| Attribute | Value |
|---|---|
| Series | ILHB |
| Ratings | AEC-Q200 |
| Features | Automotive |
| Packaging | Tape & Reel (TR) |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.037" (0.95mm) |
| Manufacturer | Vishay Dale |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Number of Lines | 1 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Current Rating (Max) | 1A |
| Impedance @ Frequency | 75 Ohms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) (Max) | 150mOhm |
