Step1: Product
Vishay Dale CSC09A0110K0GEK

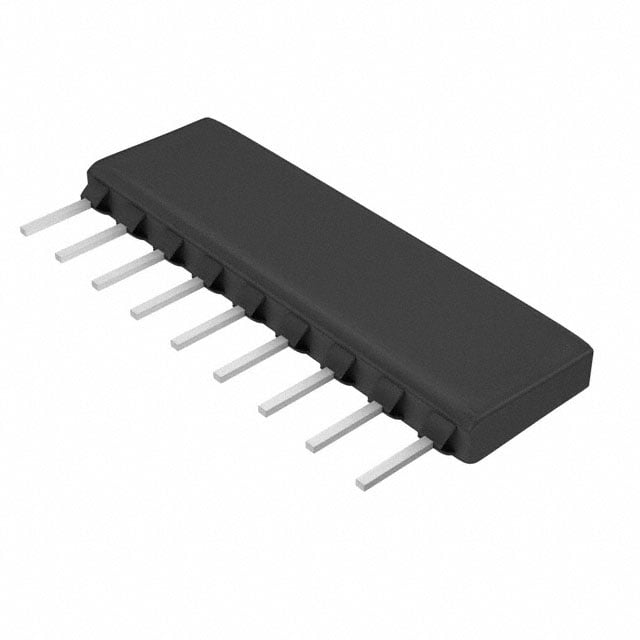

Image shown is a representation only
Manufacturer
Manufacturer No
CSC09A0110K0GEK
Quantity
20
Availability
In Stock
Package
9-SIP
Packaging
Bulk
Description
RES ARRAY 8 RES 10K OHM 9SIP
Detailed Description
10k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
DataSheet
Series
CSC
Packaging
Bulk
Tolerance
±2%
Part Status
Active
Circuit Type
Bussed
Manufacturer
Vishay Dale
Mounting Type
Through Hole
Number of Pins
9
Package / Case
9-SIP
Size / Dimension
0.890" L x 0.098" W (22.61mm x 2.49mm)
Power Per Element
200mW
Resistance (Ohms)
10k
Number of Resistors
8
Resistor-Ratio-Drift
±50ppm/°C
Height - Seated (Max)
0.195" (4.95mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
9-SIP
Temperature Coefficient
±100ppm/°C
| Attribute | Value |
|---|---|
| Series | CSC |
| Packaging | Bulk |
| Tolerance | ±2% |
| Part Status | Active |
| Circuit Type | Bussed |
| Manufacturer | Vishay Dale |
| Mounting Type | Through Hole |
| Number of Pins | 9 |
| Package / Case | 9-SIP |
| Size / Dimension | 0.890" L x 0.098" W (22.61mm x 2.49mm) |
| Power Per Element | 200mW |
| Resistance (Ohms) | 10k |
| Number of Resistors | 8 |
| Resistor-Ratio-Drift | ±50ppm/°C |
| Height - Seated (Max) | 0.195" (4.95mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 9-SIP |
| Temperature Coefficient | ±100ppm/°C |
