Step1: Product

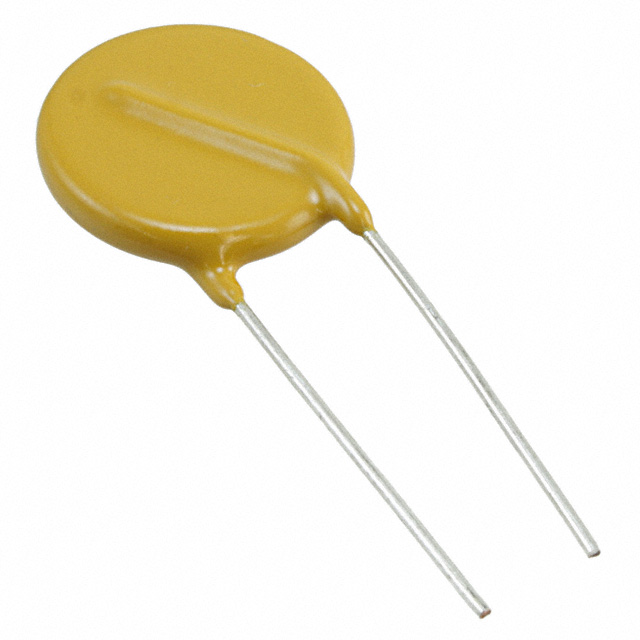

Vishay Beyschlag/Draloric/BC Components VDRH10G014BSE
Image shown is a representation only
Manufacturer
Manufacturer No
VDRH10G014BSE
Package
Disc 12mm
Packaging
Bulk
Description
VARISTOR 22V 1KA DISC 12MM
Detailed Description
22 V 1 kA Varistor 1 Circuit Through Hole Disc 12mm
DataSheet
Energy
3.2J
Series
VDRH
Packaging
Bulk
Part Status
Active
Manufacturer
Vishay Beyschlag/Draloric/BC Components
Mounting Type
Through Hole
Package / Case
Disc 12mm
Current - Surge
1 kA
Maximum AC Volts
14 V
Maximum DC Volts
18 V
Number of Circuits
1
Operating Temperature
-40°C ~ 125°C
Varistor Voltage (Max)
24.2 V
Varistor Voltage (Min)
19.8 V
Varistor Voltage (Typ)
22 V
Capacitance @ Frequency
6000 pF @ 1 kHz
| Attribute | Value |
|---|---|
| Energy | 3.2J |
| Series | VDRH |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Mounting Type | Through Hole |
| Package / Case | Disc 12mm |
| Current - Surge | 1 kA |
| Maximum AC Volts | 14 V |
| Maximum DC Volts | 18 V |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Varistor Voltage (Max) | 24.2 V |
| Varistor Voltage (Min) | 19.8 V |
| Varistor Voltage (Typ) | 22 V |
| Capacitance @ Frequency | 6000 pF @ 1 kHz |
