Step1: Product
Viking Tech WL02JT22N

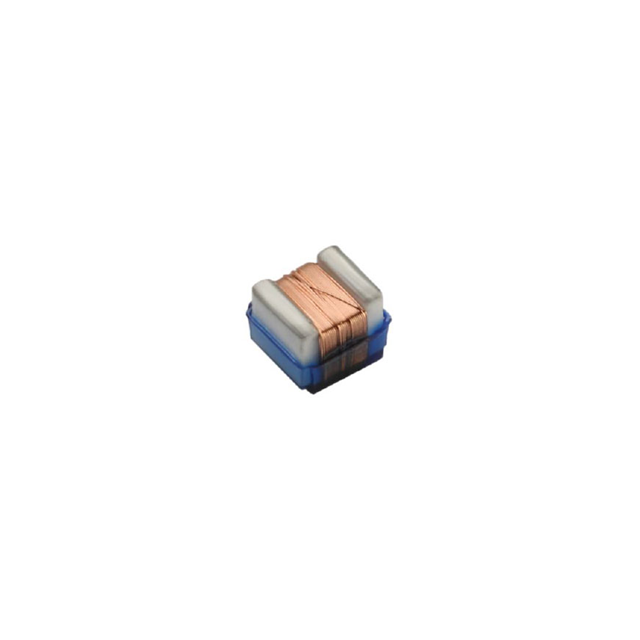

Image shown is a representation only
Manufacturer
Manufacturer No
WL02JT22N
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 22NH 400MA 300 MOHM
Detailed Description
22 nH Unshielded Drum Core, Wirewound Inductor 400 mA 300mOhm Max 0402 (1005 Metric)
DataSheet
Mfr
Viking Tech
Type
Drum Core, Wirewound
Series
WL
Ratings
AEC-Q200
Q @ Freq
25 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±5%
Inductance
22 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.050" L x 0.030" W (1.27mm x 0.76mm)
DC Resistance (DCR)
300mOhm Max
Current Rating (Amps)
400 mA
Height - Seated (Max)
0.024" (0.61mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
2.8GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Viking Tech |
| Type | Drum Core, Wirewound |
| Series | WL |
| Ratings | AEC-Q200 |
| Q @ Freq | 25 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 22 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.050" L x 0.030" W (1.27mm x 0.76mm) |
| DC Resistance (DCR) | 300mOhm Max |
| Current Rating (Amps) | 400 mA |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 2.8GHz |
| Inductance Frequency - Test | 250 MHz |
