Step1: Product
VIITOR SEMICONDUCTOR CO., LTD VDM610N180LSA

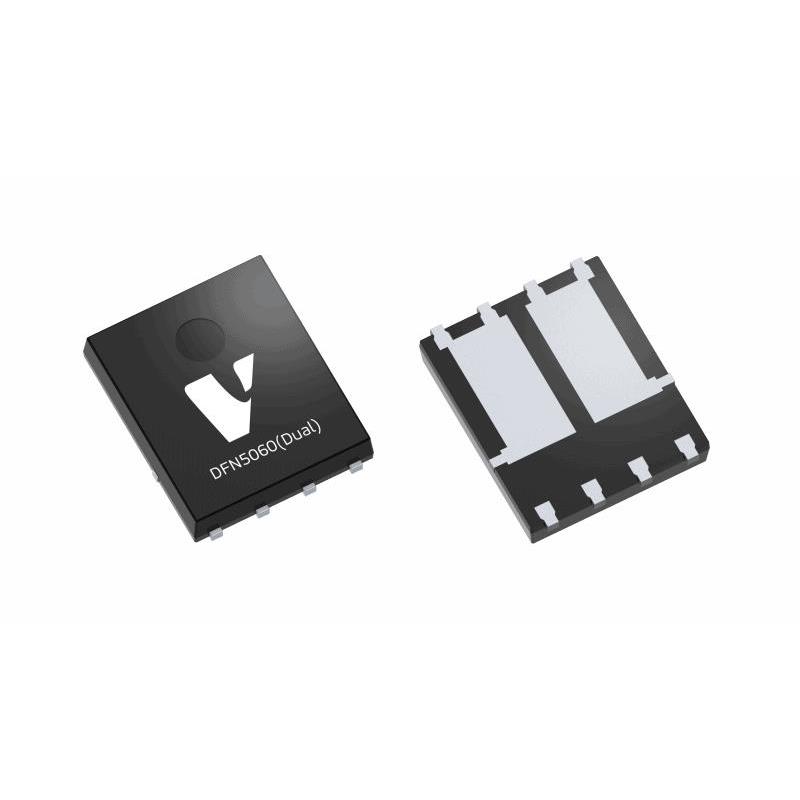

Image shown is a representation only
Manufacturer
Manufacturer No
VDM610N180LSA
Package
8-PowerTDFN
Packaging
Tape & Reel (TR)
Description
100V, Dual N Channel MOSFET, RDS
Detailed Description
Mosfet Array 100V 31A (Tc) 35W Surface Mount DFN5060 Dual
DataSheet
Grade
Automotive
Packaging
Tape & Reel (TR)
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate, 4.5V Drive
Part Status
Active
Power - Max
35W
Manufacturer
VIITOR SEMICONDUCTOR CO., LTD
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
3V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
18mOhm @ 20A, 10V
Supplier Device Package
DFN5060 Dual
Gate Charge (Qg) (Max) @ Vgs
24nC @ 10V
Drain to Source Voltage (Vdss)
100V
Input Capacitance (Ciss) (Max) @ Vds
1065pF @ 50V
Current - Continuous Drain (Id) @ 25°C
31A (Tc)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Part Status | Active |
| Power - Max | 35W |
| Manufacturer | VIITOR SEMICONDUCTOR CO., LTD |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 20A, 10V |
| Supplier Device Package | DFN5060 Dual |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 1065pF @ 50V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
