Step1: Product
VIITOR SEMICONDUCTOR CO., LTD VDCT10N038LSA

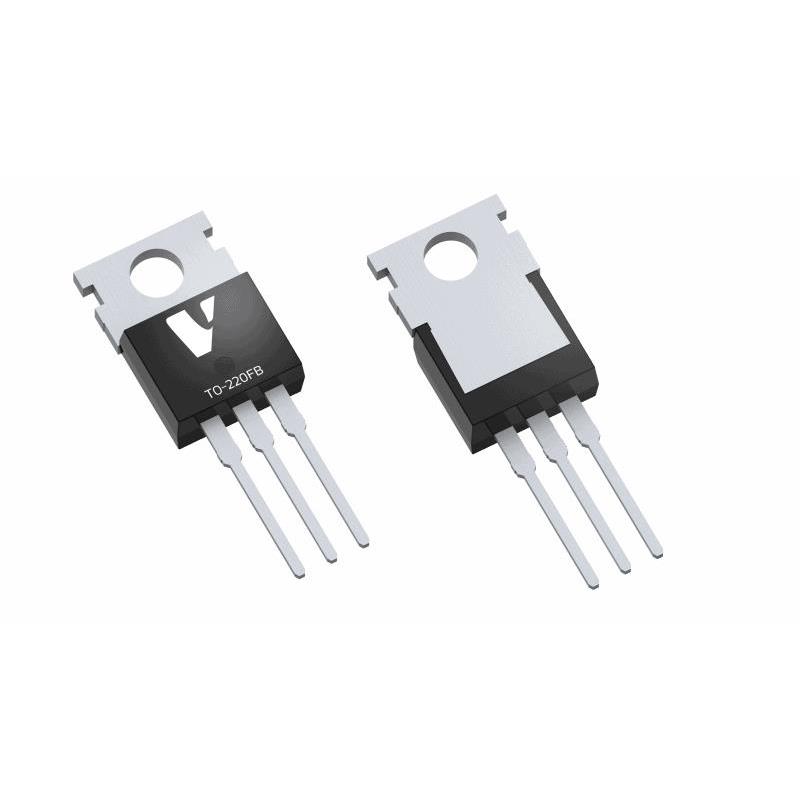

Image shown is a representation only
Manufacturer
Manufacturer No
VDCT10N038LSA
Package
TO-220-3
Packaging
Tube
Description
100V, Single N Channel MOSFET, R
Detailed Description
N-Channel 100 V 120A (Tc) 192W Through Hole TO-220FB
DataSheet
Mfr
VIITOR SEMICONDUCTOR CO., LTD
Grade
Automotive
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Through Hole
Qualification
AEC-Q101
Package / Case
TO-220-3
Vgs(th) (Max) @ Id
3.5V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
3.8mOhm @ 20A, 10V
Power Dissipation (Max)
192W
Supplier Device Package
TO-220FB
Gate Charge (Qg) (Max) @ Vgs
88 nC @ 10 V
Drain to Source Voltage (Vdss)
100 V
Input Capacitance (Ciss) (Max) @ Vds
5354 pF @ 50 V
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Current - Continuous Drain (Id) @ 25°C
120A (Tc)
| Attribute | Value |
|---|---|
| Mfr | VIITOR SEMICONDUCTOR CO., LTD |
| Grade | Automotive |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | AEC-Q101 |
| Package / Case | TO-220-3 |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 20A, 10V |
| Power Dissipation (Max) | 192W |
| Supplier Device Package | TO-220FB |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5354 pF @ 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
