Vicor Corporation PI5101-01-LGIZ

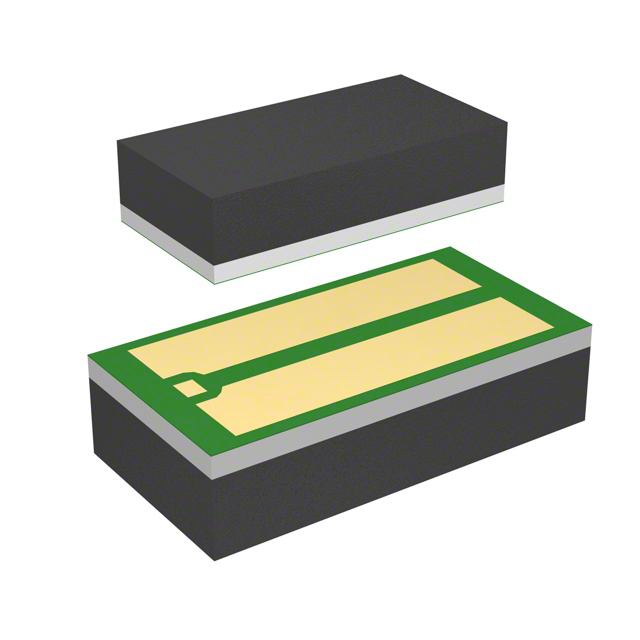

Image shown is a representation only
Manufacturer
Manufacturer No
PI5101-01-LGIZ
Package
3-FLGA
Packaging
Tray
Description
MOSFET N-CH 5V 60A 3LGA
Detailed Description
N-Channel 5 V 60A (Ta) 3.1W (Ta) Surface Mount 3-LGA (4.1x8)
DataSheet
Mfr
Vicor Corporation
Series
Picor® µRDS(on)FET®
FET Type
N-Channel
Packaging
Tray
Vgs (Max)
±5V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
3-FLGA
Vgs(th) (Max) @ Id
800mV @ 1mA
Base Product Number
PI5101
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
0.45mOhm @ 60A, 4.5V
Power Dissipation (Max)
3.1W (Ta)
Supplier Device Package
3-LGA (4.1x8)
Gate Charge (Qg) (Max) @ Vgs
65 nC @ 4.5 V
Drain to Source Voltage (Vdss)
5 V
Input Capacitance (Ciss) (Max) @ Vds
7600 pF @ 5 V
Drive Voltage (Max Rds On, Min Rds On)
3.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
60A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Vicor Corporation |
| Series | Picor® µRDS(on)FET® |
| FET Type | N-Channel |
| Packaging | Tray |
| Vgs (Max) | ±5V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 3-FLGA |
| Vgs(th) (Max) @ Id | 800mV @ 1mA |
| Base Product Number | PI5101 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 0.45mOhm @ 60A, 4.5V |
| Power Dissipation (Max) | 3.1W (Ta) |
| Supplier Device Package | 3-LGA (4.1x8) |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7600 pF @ 5 V |
| Drive Voltage (Max Rds On, Min Rds On) | 3.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
