Step1: Product
Vicor Corporation 47724-142

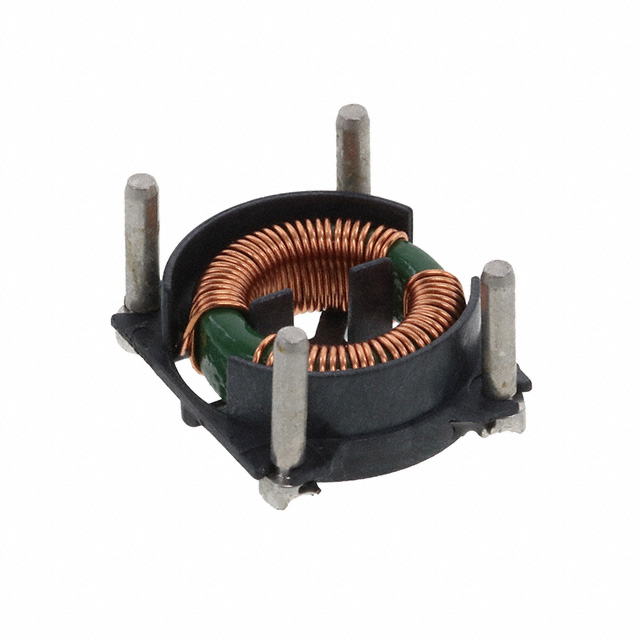

Image shown is a representation only
Manufacturer
Manufacturer No
47724-142
Package
Nonstandard
Packaging
Bulk
Description
CMC 1.4MH 4A 2LN 5.2KOHM CHAS MT
Detailed Description
1.4 mH @ 10 kHz 2 Line Common Mode Choke Chassis Mount 5.2 kOhms @ 1 MHz 4A DCR 75mOhm
DataSheet
Packaging
Bulk
Part Status
Active
Height (Max)
0.261" (6.63mm)
Manufacturer
Vicor Corporation
Mounting Type
Chassis Mount
Package / Case
Nonstandard
Number of Lines
2
Size / Dimension
0.715" L x 0.640" W (18.16mm x 16.26mm)
Base Product Number
47724
Current Rating (Max)
4A
Impedance @ Frequency
5.2 kOhms @ 1 MHz
Inductance @ Frequency
1.4 mH @ 10 kHz
DC Resistance (DCR) (Max)
75mOhm
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Part Status | Active |
| Height (Max) | 0.261" (6.63mm) |
| Manufacturer | Vicor Corporation |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Number of Lines | 2 |
| Size / Dimension | 0.715" L x 0.640" W (18.16mm x 16.26mm) |
| Base Product Number | 47724 |
| Current Rating (Max) | 4A |
| Impedance @ Frequency | 5.2 kOhms @ 1 MHz |
| Inductance @ Frequency | 1.4 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 75mOhm |
