Step1: Product

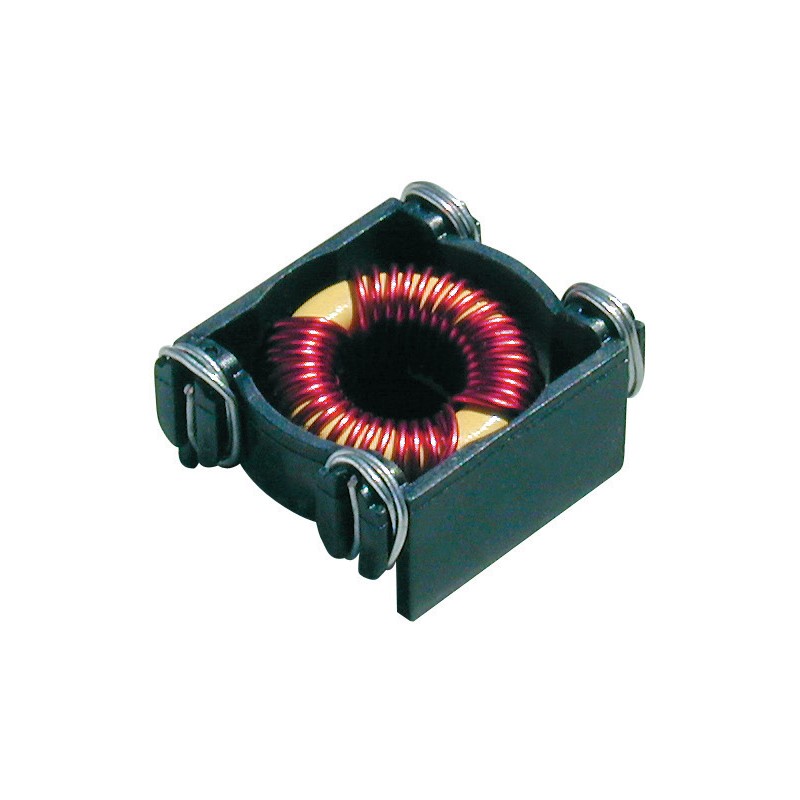

Vanguard Electronics CMN15-304S-1-B
Image shown is a representation only
Manufacturer
Manufacturer No
CMN15-304S-1-B
Packaging
Bulk
Description
FIXED IND 3000UH 10.9A 8 MOHM
Detailed Description
3000 µH Wirewound Inductor 10.9 A 8mOhm High Saturation
DataSheet
Mfr
Vanguard Electronics
Type
Wirewound
Series
CMN
Features
High Saturation
Packaging
Bulk
Tolerance
±40%
Inductance
3000 µH
Part Status
Active
Mounting Type
Surface Mount
Material - Core
Nanocrystalline
Size / Dimension
1.110" L x 1.000" W (28.19mm x 25.40mm)
DC Resistance (DCR)
8mOhm
Current Rating (Amps)
10.9 A
Height - Seated (Max)
0.450" (11.43mm)
Operating Temperature
-55°C ~ 125°C
Inductance Frequency - Test
10000 Hz
| Attribute | Value |
|---|---|
| Mfr | Vanguard Electronics |
| Type | Wirewound |
| Series | CMN |
| Features | High Saturation |
| Packaging | Bulk |
| Tolerance | ±40% |
| Inductance | 3000 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Material - Core | Nanocrystalline |
| Size / Dimension | 1.110" L x 1.000" W (28.19mm x 25.40mm) |
| DC Resistance (DCR) | 8mOhm |
| Current Rating (Amps) | 10.9 A |
| Height - Seated (Max) | 0.450" (11.43mm) |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10000 Hz |
