Step1: Product

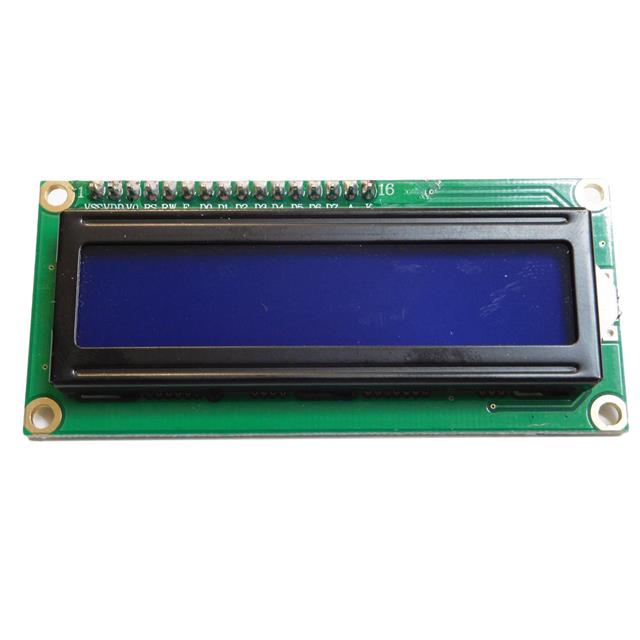

UNIVERSAL-SOLDER Electronics Ltd 26076
Image shown is a representation only
Manufacturer
Manufacturer No
26076
Packaging
Bag
Description
BLUE LCD 1602 2x16 Character Mat
Detailed Description
Character Display Module Transmissive 5 x 7 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED - White 4/8-Bit 80.00mm x 36.00mm x 14.00mm
Datasheet
Series
1602A V2.0
Dot Size
0.50mm W x 0.55mm H
Backlight
LED - White
Interface
4/8-Bit
Packaging
Bag
Text Color
White
Display Mode
Transmissive
Display Type
STN - Super-Twisted Nematic, TN - Twisted Nematic
Manufacturer
UNIVERSAL-SOLDER Electronics Ltd
Viewing Area
64.00mm L x 14.00mm W
Character Size
2.95mm H x 4.75mm W
Display Format
16 x 2
Controller Type
HD44780, ST7066
Background Color
Blue
Character Format
5 x 7 Dots
Voltage - Supply
4.7V ~ 5.5V
Outline L x W x H
80.00mm x 36.00mm x 14.00mm
Number of Characters
32.0
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | 1602A V2.0 |
| Dot Size | 0.50mm W x 0.55mm H |
| Backlight | LED - White |
| Interface | 4/8-Bit |
| Packaging | Bag |
| Text Color | White |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Manufacturer | UNIVERSAL-SOLDER Electronics Ltd |
| Viewing Area | 64.00mm L x 14.00mm W |
| Character Size | 2.95mm H x 4.75mm W |
| Display Format | 16 x 2 |
| Controller Type | HD44780, ST7066 |
| Background Color | Blue |
| Character Format | 5 x 7 Dots |
| Voltage - Supply | 4.7V ~ 5.5V |
| Outline L x W x H | 80.00mm x 36.00mm x 14.00mm |
| Number of Characters | 32.0 |
| Operating Temperature | -20°C ~ 70°C |
