Step1: Product
Union Semiconductor International Limited UM4401

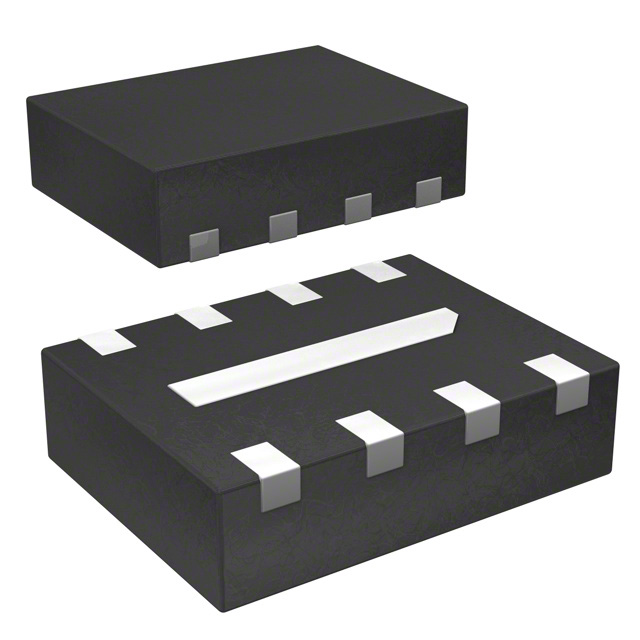

Image shown is a representation only
Manufacturer
Manufacturer No
UM4401
Date Code
2011
Quantity
3,000
Availability
In Stock
Package
8-UFDFN
Packaging
Tape & Reel (TR)
Description
FILTER RC(PI) 100OHM ESD SMD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohm, C = 10pF 8-UFDFN
Datasheet
Type
Low Pass
Height
0.024" (0.61mm)
Values
R = 100Ohm, C = 10pF
Packaging
Tape & Reel (TR)
Technology
RC (Pi)
Applications
Data Lines for Mobile Devices
Filter Order
2nd
Manufacturer
Union Semiconductor International Limited
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
8-UFDFN
Voltage - Rated
5V
Size / Dimension
0.083" L x 0.063" W (2.10mm x 1.60mm)
Attenuation Value
-36dB @ 800MHz, -32dB @ 2 ~ 5GHz
Number of Channels
4
Operating Temperature
-40°C ~ 85°C
Center / Cutoff Frequency
150MHz (Cutoff)
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.024" (0.61mm) |
| Values | R = 100Ohm, C = 10pF |
| Packaging | Tape & Reel (TR) |
| Technology | RC (Pi) |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 2nd |
| Manufacturer | Union Semiconductor International Limited |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 8-UFDFN |
| Voltage - Rated | 5V |
| Size / Dimension | 0.083" L x 0.063" W (2.10mm x 1.60mm) |
| Attenuation Value | -36dB @ 800MHz, -32dB @ 2 ~ 5GHz |
| Number of Channels | 4 |
| Operating Temperature | -40°C ~ 85°C |
| Center / Cutoff Frequency | 150MHz (Cutoff) |
