Step1: Product

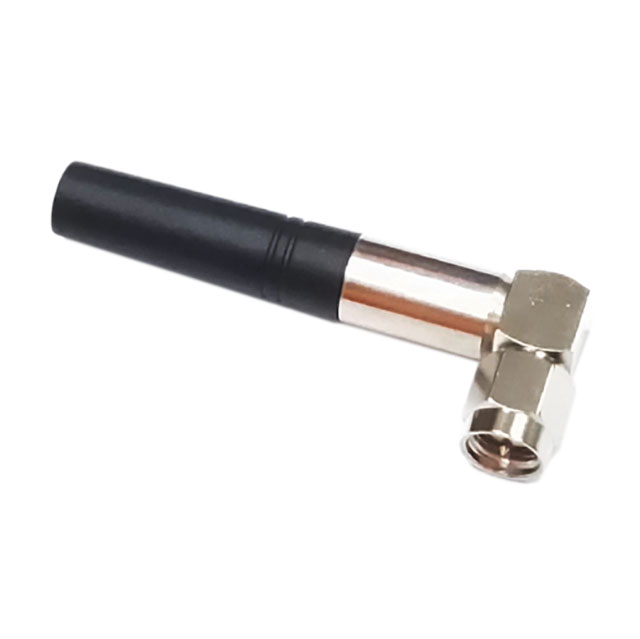

Unictron Technologies Corporation TA-24B-A-L01
Image shown is a representation only
Manufacturer
Manufacturer No
TA-24B-A-L01
Packaging
Bulk
Description
LTE TERMINAL ANTENNA
Detailed Description
RF ANTENNA LTE Whip, Right Angle SMA Male Connector Mount
DataSheet
Gain
3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi
VSWR
7.28, 7.28, 2, 3, 3, 3.5
Packaging
Bulk
Part Status
Active
Return Loss
-2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB
Termination
SMA Male
Antenna Type
Whip, Right Angle
Applications
LTE
Height (Max)
1.890" (48.00mm)
Manufacturer
Unictron Technologies Corporation
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz
Number of Bands
6
RF Family/Standard
Cellular
Base Product Number
TA-24B
Frequency (Center/Band)
761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz
| Attribute | Value |
|---|---|
| Gain | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi |
| VSWR | 7.28, 7.28, 2, 3, 3, 3.5 |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB |
| Termination | SMA Male |
| Antenna Type | Whip, Right Angle |
| Applications | LTE |
| Height (Max) | 1.890" (48.00mm) |
| Manufacturer | Unictron Technologies Corporation |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Base Product Number | TA-24B |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
