Step1: Product

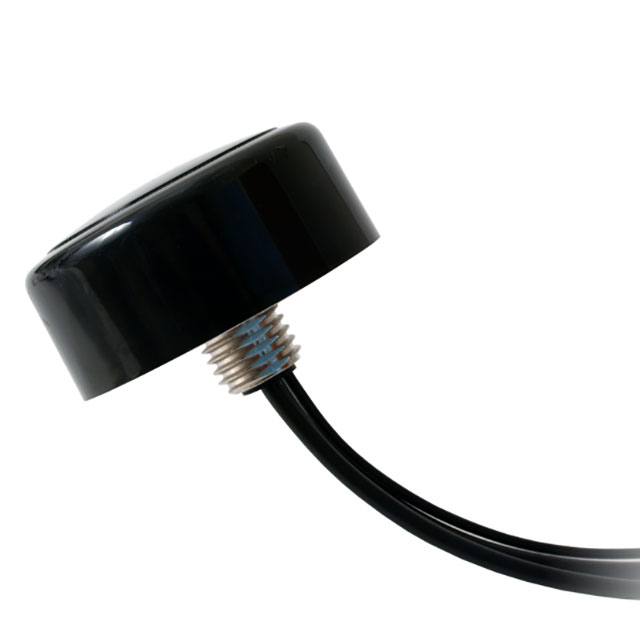

Unictron Technologies Corporation H1S600000006AU
Image shown is a representation only
Manufacturer
Manufacturer No
H1S600000006AU
Packaging
Bulk
Description
3-IN-1 COMBO EXTERNAL ANTENNA
Detailed Description
RF ANTENNA 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module SMA Male Screw Mount
Gain
1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi
VSWR
2, 4.5, 3, 3.5, 2.5
Features
Cable - 300mm
Packaging
Bulk
Part Status
Active
Return Loss
-4dB, -6dB, -5.5dB, -10dB, -8dB
Termination
SMA Male
Antenna Type
Module
Applications
5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Height (Max)
1.492" (37.90mm)
Manufacturer
Unictron Technologies Corporation
Mounting Type
Screw Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
Number of Bands
14
Ingress Protection
IPX7
RF Family/Standard
Cellular, Navigation, WiFi
Base Product Number
H1S600000006
Frequency (Center/Band)
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz
| Attribute | Value |
|---|---|
| Gain | 1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi |
| VSWR | 2, 4.5, 3, 3.5, 2.5 |
| Features | Cable - 300mm |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -4dB, -6dB, -5.5dB, -10dB, -8dB |
| Termination | SMA Male |
| Antenna Type | Module |
| Applications | 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
| Height (Max) | 1.492" (37.90mm) |
| Manufacturer | Unictron Technologies Corporation |
| Mounting Type | Screw Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 14 |
| Ingress Protection | IPX7 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Base Product Number | H1S600000006 |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz |
