Step1: Product
UMW SN74LVC1G3157DCKR

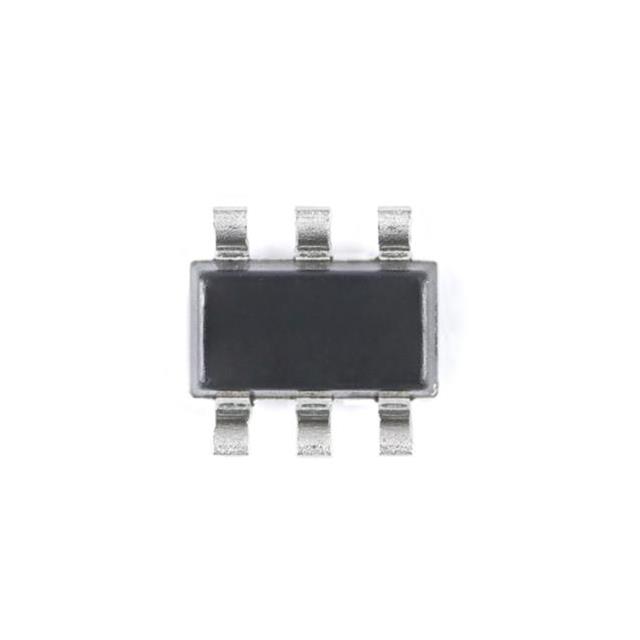

Image shown is a representation only
Manufacturer
Manufacturer No
SN74LVC1G3157DCKR
Date Code
2035
Quantity
28,706
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC SW SPDT-NO/NCX1 7OHM SC70-6
Detailed Description
1 Circuit IC Switch 2:1 7Ohm (Typ) SC-70-6
Datasheet
Series
74LVC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
UMW
Mounting Type
Surface Mount
-3db Bandwidth
350MHz
Package / Case
6-TSSOP, SC-88, SOT-363
Switch Circuit
SPDT - NO/NC
Charge Injection
7pC
Number of Circuits
1
Base Product Number
74LVC1G3157
Operating Temperature
-55°C ~ 125°C (TA)
Supplier Device Package
SC-70-6
On-State Resistance (Max)
7Ohm (Typ)
Switch Time (Ton, Toff) (Max)
5.2ns, 3.5ns
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Current - Leakage (IS(off)) (Max)
100nA (Max)
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
150mOhm (Typ)
Channel Capacitance (CS(off), CD(off))
5.2pF
| Attribute | Value |
|---|---|
| Series | 74LVC |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | UMW |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 350MHz |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Switch Circuit | SPDT - NO/NC |
| Charge Injection | 7pC |
| Number of Circuits | 1 |
| Base Product Number | 74LVC1G3157 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Supplier Device Package | SC-70-6 |
| On-State Resistance (Max) | 7Ohm (Typ) |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 100nA (Max) |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 5.2pF |
