Step1: Product
UMW EL357C

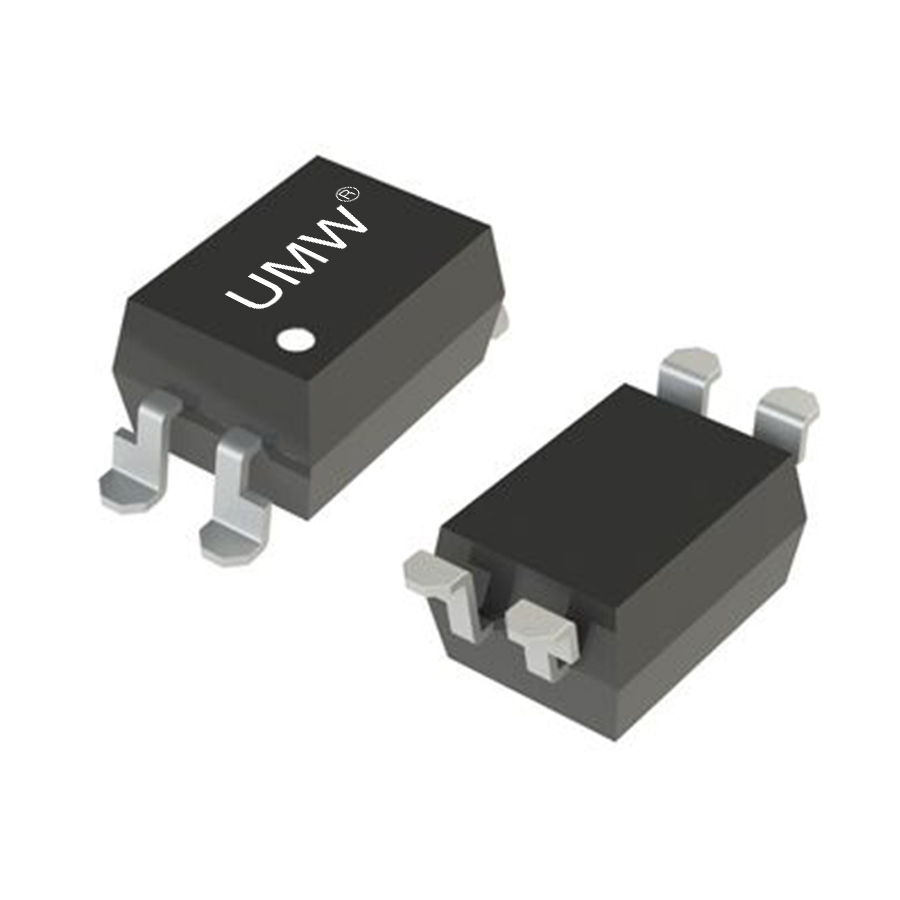

Image shown is a representation only
Manufacturer
Manufacturer No
EL357C
Package
4-SMD, Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISOLATOR 3.75KV 1CH TRANS 4-
Detailed Description
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet
Series
EL357
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
DC
Output Type
Transistor
Manufacturer
UMW
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Number of Channels
1
Voltage - Isolation
3750Vrms
Vce Saturation (Max)
200mV
Operating Temperature
-55°C ~ 110°C
Rise / Fall Time (Typ)
3µs, 4µs
Voltage - Output (Max)
80V
Supplier Device Package
4-SOP
Current - Output / Channel
50mA
Current Transfer Ratio (Max)
400% @ 5mA
Current Transfer Ratio (Min)
200% @ 5mA
Voltage - Forward (Vf) (Typ)
1.24V
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Series | EL357 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | DC |
| Output Type | Transistor |
| Manufacturer | UMW |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Rise / Fall Time (Typ) | 3µs, 4µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 4-SOP |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Current - DC Forward (If) (Max) | 60 mA |
