Step1: Product

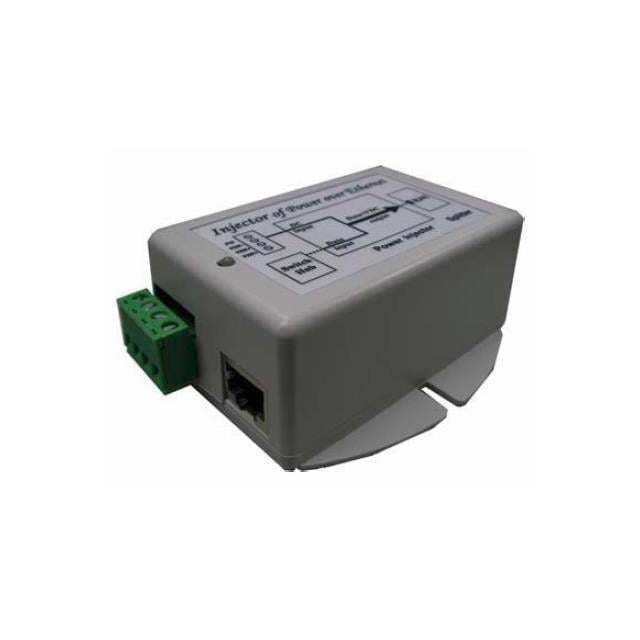

Tycon Systems Inc. TP-DCDC-1248GD
Image shown is a representation only
Manufacturer
Manufacturer No
TP-DCDC-1248GD
Packaging
Retail Package
Description
10-36VDC Wire Terminal IN, 48V 1
Detailed Description
48V Power Over Ethernet (POE) 2 Port Passive Injector 10/100/1000 Mbps Data Rate
DataSheet
Type
Passive Injector
Series
TP-DCDC
Features
OCP, OVP, SCP
Data Rate
10/100/1000 Mbps
Packaging
Retail Package
Compliance
IEEE802.3af
Efficiency
75%
Part Status
Active
Manufacturer
Tycon Systems Inc.
Mounting Type
Chassis Mount
Approval Agency
CSA, FCC, TUV
Input Connector
RJ45 (Data, Power)
Number of Ports
2
Standard Number
60950-1
Voltage - Input
9 ~ 36V
Current - Output
350 mA
Output Connector
RJ45 (Data, Power)
Size / Dimension
3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm)
Voltage - Output
48V
Operating Temperature
-30°C ~ 60°C
Power (Watts) - Per Port
17W
| Attribute | Value |
|---|---|
| Type | Passive Injector |
| Series | TP-DCDC |
| Features | OCP, OVP, SCP |
| Data Rate | 10/100/1000 Mbps |
| Packaging | Retail Package |
| Compliance | IEEE802.3af |
| Efficiency | 75% |
| Part Status | Active |
| Manufacturer | Tycon Systems Inc. |
| Mounting Type | Chassis Mount |
| Approval Agency | CSA, FCC, TUV |
| Input Connector | RJ45 (Data, Power) |
| Number of Ports | 2 |
| Standard Number | 60950-1 |
| Voltage - Input | 9 ~ 36V |
| Current - Output | 350 mA |
| Output Connector | RJ45 (Data, Power) |
| Size / Dimension | 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm) |
| Voltage - Output | 48V |
| Operating Temperature | -30°C ~ 60°C |
| Power (Watts) - Per Port | 17W |
