Step1: Product
TYCLON SMAJ-402

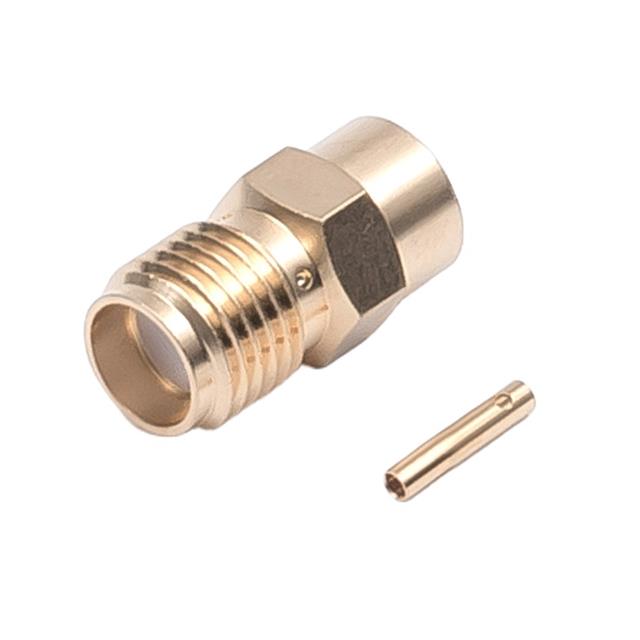

Image shown is a representation only
Manufacturer
Manufacturer No
SMAJ-402
Packaging
Retail Package
Description
SMAJ-402 SMA CONNECTOR
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
TYCLON
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Gold
Cable Group
RG-402 (.141" Semi Rigid)
Part Status
Active
Body Material
Stainless Steel
Housing Color
Gold
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
330 V
Connector Style
SMA
Frequency - Max
12.4 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TYCLON |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Gold |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Gold |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 330 V |
| Connector Style | SMA |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
