Step1: Product

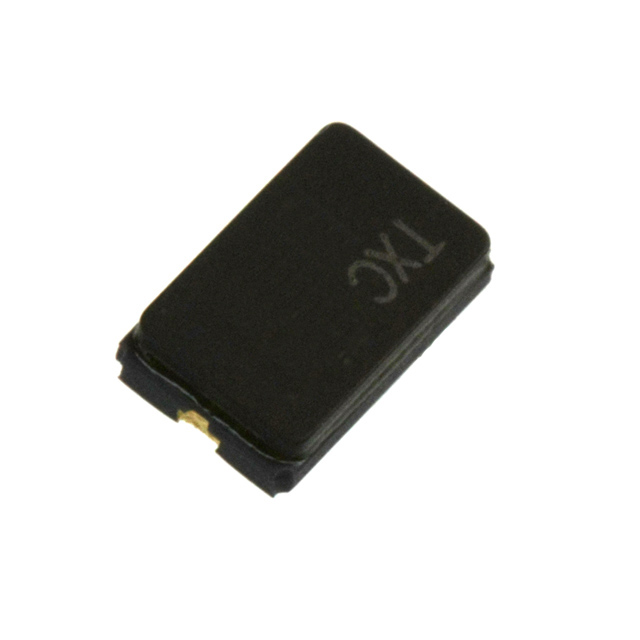

TXC CORPORATION 7A24000012
Image shown is a representation only
Manufacturer
Manufacturer No
7A24000012
Date Code
18+
Quantity
5,541
Availability
In Stock
Package
2-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
CRYSTAL 24.0000MHZ 16PF SMD
Detailed Description
24 MHz ±30ppm Crystal 16pF 50 Ohms 2-SMD, No Lead
Datasheet
Mfr
TXC CORPORATION
Type
MHz Crystal
Series
7A
Frequency
24 MHz
Packaging
Tape & Reel (TR)
Mounting Type
Surface Mount
Operating Mode
Fundamental
Package / Case
2-SMD, No Lead
Load Capacitance
16pF
Size / Dimension
0.197" L x 0.126" W (5.00mm x 3.20mm)
Frequency Stability
±30ppm
Frequency Tolerance
±30ppm
Height - Seated (Max)
0.053" (1.35mm)
Operating Temperature
-20°C ~ 85°C
ESR (Equivalent Series Resistance)
50 Ohms
| Attribute | Value |
|---|---|
| Mfr | TXC CORPORATION |
| Type | MHz Crystal |
| Series | 7A |
| Frequency | 24 MHz |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 16pF |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±30ppm |
| Height - Seated (Max) | 0.053" (1.35mm) |
| Operating Temperature | -20°C ~ 85°C |
| ESR (Equivalent Series Resistance) | 50 Ohms |
