Step1: Product
TT Electronics/BI Magnetics HM42-10002LFTR

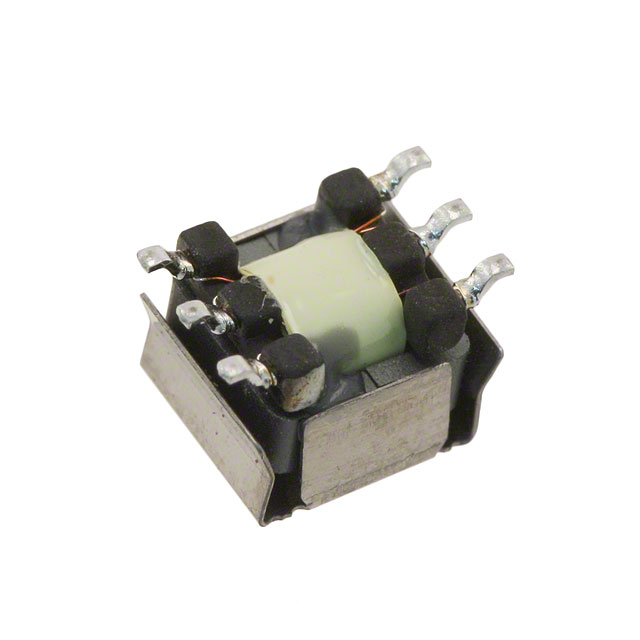

Image shown is a representation only
Manufacturer
Manufacturer No
HM42-10002LFTR
Packaging
Cut Tape (CT)
Description
PULSE XFMR 2:1:1 300UH
Detailed Description
300µH Gate Drive Pulse Transformer 2:1:1 Surface Mount
DataSheet
Series
HM42
Packaging
Cut Tape (CT)
Inductance
300µH
Part Status
Discontinued at DigiKey
Manufacturer
TT Electronics/BI Magnetics
Mounting Type
Surface Mount
ET (Volt-Time)
40.4VµS
Size / Dimension
0.260" L x 0.319" W (6.60mm x 8.10mm)
Transformer Type
Gate Drive
Base Product Number
HM42
Height - Seated (Max)
0.217" (5.50mm)
Operating Temperature
-40°C ~ 125°C
Turns Ratio - Primary:Secondary
2:1:1
| Attribute | Value |
|---|---|
| Series | HM42 |
| Packaging | Cut Tape (CT) |
| Inductance | 300µH |
| Part Status | Discontinued at DigiKey |
| Manufacturer | TT Electronics/BI Magnetics |
| Mounting Type | Surface Mount |
| ET (Volt-Time) | 40.4VµS |
| Size / Dimension | 0.260" L x 0.319" W (6.60mm x 8.10mm) |
| Transformer Type | Gate Drive |
| Base Product Number | HM42 |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Turns Ratio - Primary:Secondary | 2:1:1 |
