Step1: Product

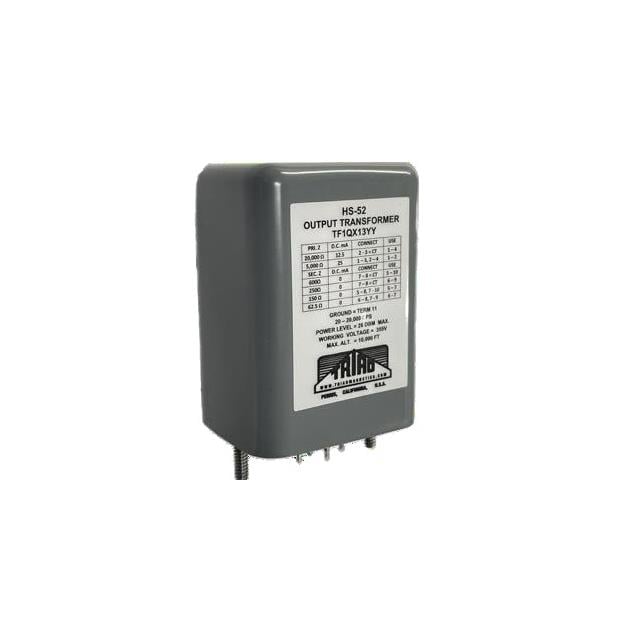

Triad Magnetics HS-52
Image shown is a representation only
Manufacturer
Manufacturer No
HS-52
Packaging
Box
Description
AUDIO XFMR 62.5/150/250/600 OHM
Detailed Description
20k, 5k Impedance Primary Ohms 62.5, 150, 250, 600 Impedance Secondary Ohms 5.6:1 Audio Transformer 20Hz ~ 20kHz Chassis Mount
DataSheet
Series
HS
Packaging
Box
Part Status
Active
Power Level
+26dB
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Frequency Range
20Hz ~ 20kHz
Transformer Type
Impedance Matching
Termination Style
Wire Leads
Frequency Response
-1.35dB
Operating Temperature
0°C ~ 70°C
Impedance - Primary (Ohms)
20k, 5k
Impedance - Secondary (Ohms)
62.5, 150, 250, 600
DC Resistance (DCR) - Primary
410Ohm, 615Ohm
DC Resistance (DCR) - Secondary
5.82Ohm, 7.37Ohm, 4.5Ohm
Turns Ratio - Primary:Secondary
5.6:1
| Attribute | Value |
|---|---|
| Series | HS |
| Packaging | Box |
| Part Status | Active |
| Power Level | +26dB |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Frequency Range | 20Hz ~ 20kHz |
| Transformer Type | Impedance Matching |
| Termination Style | Wire Leads |
| Frequency Response | -1.35dB |
| Operating Temperature | 0°C ~ 70°C |
| Impedance - Primary (Ohms) | 20k, 5k |
| Impedance - Secondary (Ohms) | 62.5, 150, 250, 600 |
| DC Resistance (DCR) - Primary | 410Ohm, 615Ohm |
| DC Resistance (DCR) - Secondary | 5.82Ohm, 7.37Ohm, 4.5Ohm |
| Turns Ratio - Primary:Secondary | 5.6:1 |
