Step1: Product

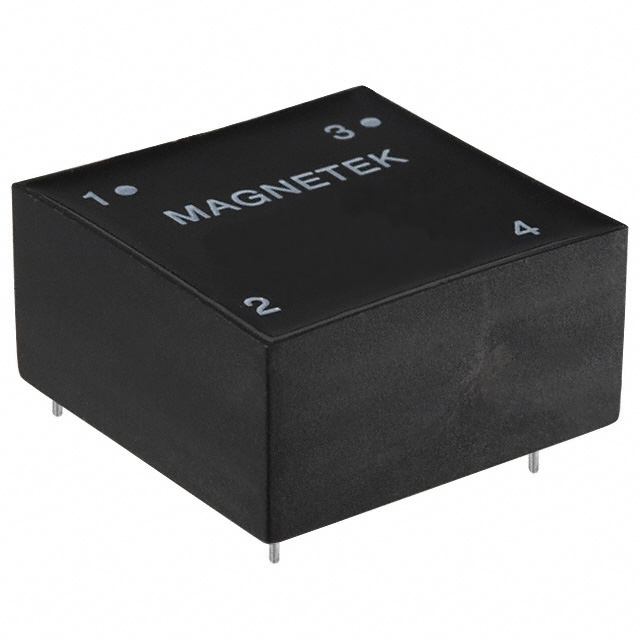

Triad Magnetics CMT908-H1
Image shown is a representation only
Manufacturer
Manufacturer No
CMT908-H1
Package
Horizontal, 4 PC Pin
Packaging
Bulk
Description
CMC 2MH 7.5A 2LN TH
Detailed Description
2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 7.5A DCR 20mOhm
DataSheet
Series
CMT
Packaging
Bulk
Filter Type
Power Line
Part Status
Active
Height (Max)
0.800" (20.32mm)
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Package / Case
Horizontal, 4 PC Pin
Number of Lines
2
Size / Dimension
1.500" L x 1.500" W (38.10mm x 38.10mm)
Voltage Rating - AC
250V
Current Rating (Max)
7.5A
Inductance @ Frequency
2 mH @ 10 kHz
DC Resistance (DCR) (Max)
20mOhm
| Attribute | Value |
|---|---|
| Series | CMT |
| Packaging | Bulk |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.800" (20.32mm) |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 1.500" L x 1.500" W (38.10mm x 38.10mm) |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 7.5A |
| Inductance @ Frequency | 2 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 20mOhm |
