Step1: Product

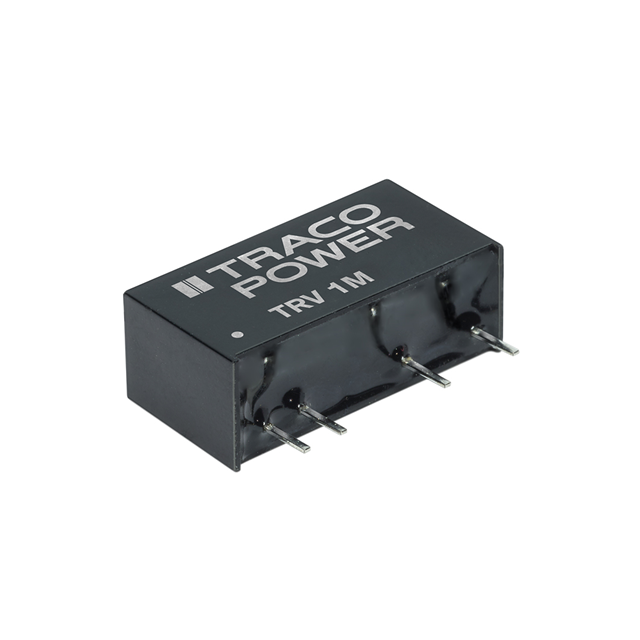

Traco Power TRV 1-2422M
Image shown is a representation only
Manufacturer
Manufacturer No
TRV 1-2422M
Package
9-SIP Module, 5 Leads
Packaging
Tube
Description
DC DC CONVERTER +/-12V 1W
Detailed Description
Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 19.2V - 28.8V Input
DataSheet
Mfr
Traco Power
Type
Isolated Module
Series
TRV 1M (1W)
Packaging
Tube
Efficiency
81%
Part Status
Active
Applications
ITE (Commercial), Medical
Mounting Type
Through Hole
Power (Watts)
1 W
Package / Case
9-SIP Module, 5 Leads
Approval Agency
CB, cURus
Size / Dimension
0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm)
Number of Outputs
2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Base Product Number
TRV 1
Voltage - Isolation
5 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
28.8V
Voltage - Input (Min)
19.2V
Current - Output (Max)
42mA, 42mA
| Attribute | Value |
|---|---|
| Mfr | Traco Power |
| Type | Isolated Module |
| Series | TRV 1M (1W) |
| Packaging | Tube |
| Efficiency | 81% |
| Part Status | Active |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Through Hole |
| Power (Watts) | 1 W |
| Package / Case | 9-SIP Module, 5 Leads |
| Approval Agency | CB, cURus |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Base Product Number | TRV 1 |
| Voltage - Isolation | 5 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 28.8V |
| Voltage - Input (Min) | 19.2V |
| Current - Output (Max) | 42mA, 42mA |
