Traco Power TBA 1-0523HI

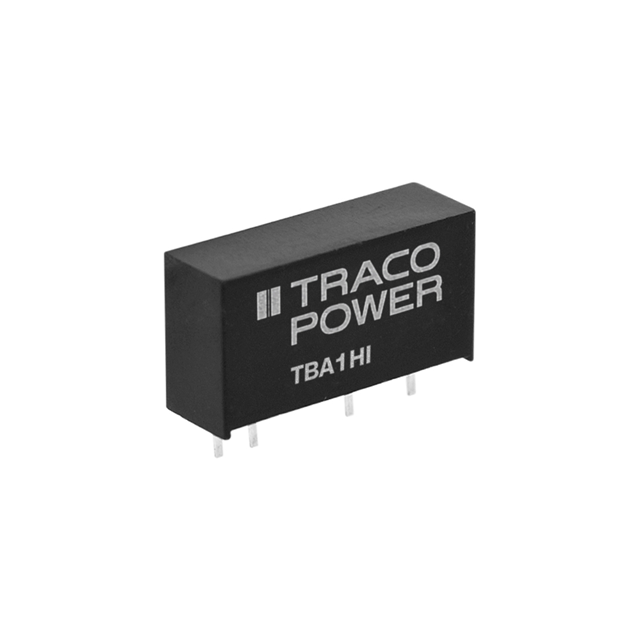

Image shown is a representation only
Manufacturer
Manufacturer No
TBA 1-0523HI
Quantity
80
Availability
In Stock
Package
7-SIP Module, 5 Leads
Packaging
Tube
Description
DC DC CONVERTER +/-15V 990MW
Detailed Description
Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
DataSheet
Mfr
Traco Power
Type
Isolated Module
Series
TBA 1HI (1W)
Features
SCP
Packaging
Tube
Efficiency
82%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
990 mW
Package / Case
7-SIP Module, 5 Leads
Size / Dimension
0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Number of Outputs
2
Voltage - Output 1
15V
Voltage - Output 2
-15V
Base Product Number
TBA 1
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 95°C (With Derating)
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
33mA, 33mA
| Attribute | Value |
|---|---|
| Mfr | Traco Power |
| Type | Isolated Module |
| Series | TBA 1HI (1W) |
| Features | SCP |
| Packaging | Tube |
| Efficiency | 82% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 990 mW |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Base Product Number | TBA 1 |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 33mA, 33mA |
