Toshiba Semiconductor and Storage TLP2110(TP,F)

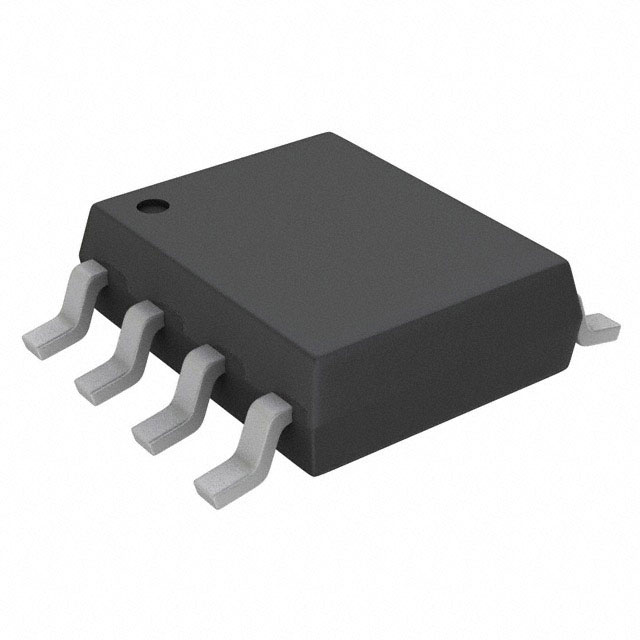

Image shown is a representation only
Manufacturer
Manufacturer No
TLP2110(TP,F)
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR)
Description
OPTOISO 2.5KV 2CH PUSH PULL 8-SO
Detailed Description
Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 2500Vrms 2 Channel 25kV/µs CMTI 8-SO
DataSheet
Data Rate
5MBd
Packaging
Tape & Reel (TR)
Input Type
DC
Output Type
Push-Pull, Totem Pole
Part Status
Not For New Designs
Manufacturer
Toshiba Semiconductor and Storage
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Supply
2.7V ~ 5.5V
Number of Channels
2
Base Product Number
TLP2110
Voltage - Isolation
2500Vrms
Operating Temperature
-40°C ~ 125°C
Inputs - Side 1/Side 2
2/0
Rise / Fall Time (Typ)
11ns, 13ns
Supplier Device Package
8-SO
Current - Output / Channel
10 mA
Voltage - Forward (Vf) (Typ)
1.53V
Current - DC Forward (If) (Max)
8mA
Propagation Delay tpLH / tpHL (Max)
250ns, 250ns
Common Mode Transient Immunity (Min)
25kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 5MBd |
| Packaging | Tape & Reel (TR) |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Part Status | Not For New Designs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Number of Channels | 2 |
| Base Product Number | TLP2110 |
| Voltage - Isolation | 2500Vrms |
| Operating Temperature | -40°C ~ 125°C |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 11ns, 13ns |
| Supplier Device Package | 8-SO |
| Current - Output / Channel | 10 mA |
| Voltage - Forward (Vf) (Typ) | 1.53V |
| Current - DC Forward (If) (Max) | 8mA |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
