Step1: Product

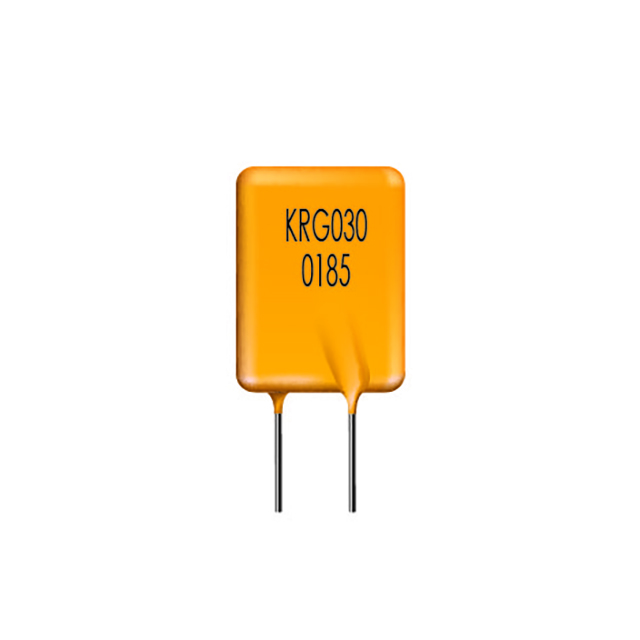

Thinking Electronics Industrial Co. KRG0300300SBY
Image shown is a representation only
Manufacturer
Manufacturer No
KRG0300300SBY
Package
Radial, Disc
Packaging
Bag
Description
Polymer PTC Resettable Fuse 30V
Detailed Description
Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
DataSheet
Type
Polymeric
Series
KRG
Packaging
Bag
Part Status
Active
Lead Spacing
0.197" (5.00mm)
Manufacturer
Thinking Electronics Industrial Co.
Time to Trip
10.8 s
Current - Max
40 A
Mounting Type
Through Hole
Voltage - Max
30V
Package / Case
Radial, Disc
Approval Agency
cUL, TUV, UL
Size / Dimension
0.449" L x 0.138" W (11.40mm x 3.50mm)
Current - Trip (It)
6 A
Height - Seated (Max)
0.681" (17.30mm)
Operating Temperature
-40°C ~ 85°C
Resistance - 25°C (Typ)
50 mOhms
Current - Hold (Ih) (Max)
3 A
Resistance - Initial (Ri) (Min)
20 mOhms
Resistance - Post Trip (R1) (Max)
80 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | KRG |
| Packaging | Bag |
| Part Status | Active |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | Thinking Electronics Industrial Co. |
| Time to Trip | 10.8 s |
| Current - Max | 40 A |
| Mounting Type | Through Hole |
| Voltage - Max | 30V |
| Package / Case | Radial, Disc |
| Approval Agency | cUL, TUV, UL |
| Size / Dimension | 0.449" L x 0.138" W (11.40mm x 3.50mm) |
| Current - Trip (It) | 6 A |
| Height - Seated (Max) | 0.681" (17.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistance - 25°C (Typ) | 50 mOhms |
| Current - Hold (Ih) (Max) | 3 A |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
