Texas Instruments UCC3895DWTR

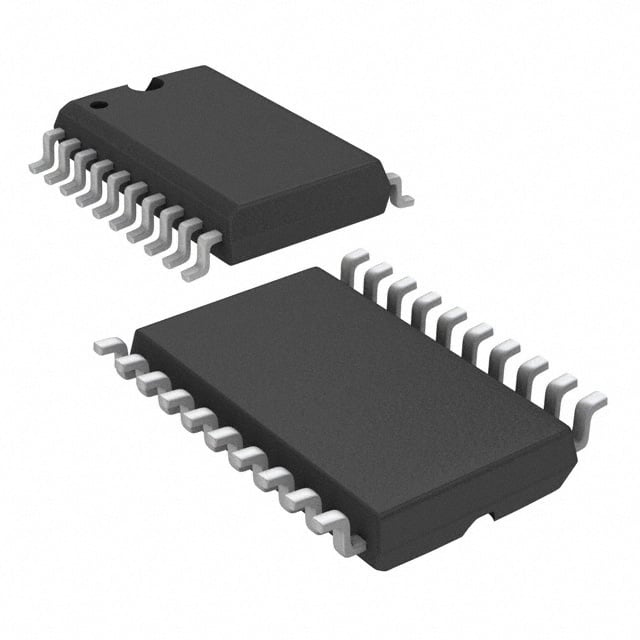

Image shown is a representation only
Manufacturer
Manufacturer No
UCC3895DWTR
Quantity
4497
Availability
In Stock
Package
20-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC OFFLINE SW FULL-BRDG 20SOIC
Detailed Description
Phase-Shifted Full-Bridge Regulator Positive Output DC-DC Controller IC 20-SOIC
DataSheet
Topology
Phase-Shifted Full-Bridge
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Clock Sync
Yes
Output Type
PWM
Part Status
Active
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Output Phases
1
Package / Case
20-SOIC (0.295", 7.50mm Width)
Control Features
Frequency Control, Soft Start, Sync
Duty Cycle (Max)
100%
Number of Outputs
1
Base Product Number
UCC3895
Output Configuration
Positive
Frequency - Switching
1MHz
Operating Temperature
0°C ~ 70°C (TA)
Supplier Device Package
20-SOIC
Voltage - Supply (Vcc/Vdd)
10V ~ 16.5V
| Attribute | Value |
|---|---|
| Topology | Phase-Shifted Full-Bridge |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Clock Sync | Yes |
| Output Type | PWM |
| Part Status | Active |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Control Features | Frequency Control, Soft Start, Sync |
| Duty Cycle (Max) | 100% |
| Number of Outputs | 1 |
| Base Product Number | UCC3895 |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Supplier Device Package | 20-SOIC |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16.5V |
