Step1: Product
Texas Instruments TPSM84209RKHT

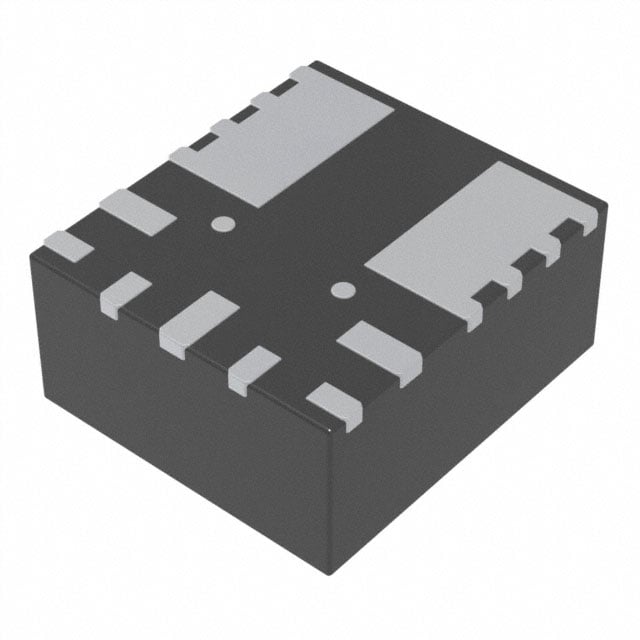

Image shown is a representation only
Manufacturer
Manufacturer No
TPSM84209RKHT
Quantity
859
Availability
In Stock
Package
9-PowerQFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DC DC CONVERTER 1.2-6V 15W
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 6V 2.5A 4.5V - 28V Input
DataSheet
Mfr
Texas Instruments
Type
Non-Isolated PoL Module
Series
TPSM
Features
Adjustable Output, Remote On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Efficiency
86.5%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
9-PowerQFN
Control Features
Enable, Active High
Size / Dimension
0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm)
Number of Outputs
1
Voltage - Output 1
1.2 ~ 6V
Base Product Number
TPSM84209
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
28V
Voltage - Input (Min)
4.5V
Current - Output (Max)
2.5A
Supplier Device Package
9-QFN-FCMOD (4.5x4)
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Type | Non-Isolated PoL Module |
| Series | TPSM |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Efficiency | 86.5% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 9-PowerQFN |
| Control Features | Enable, Active High |
| Size / Dimension | 0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 1.2 ~ 6V |
| Base Product Number | TPSM84209 |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 28V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 2.5A |
| Supplier Device Package | 9-QFN-FCMOD (4.5x4) |
