Step1: Product
Texas Instruments TMCS1126C5BQDVGR

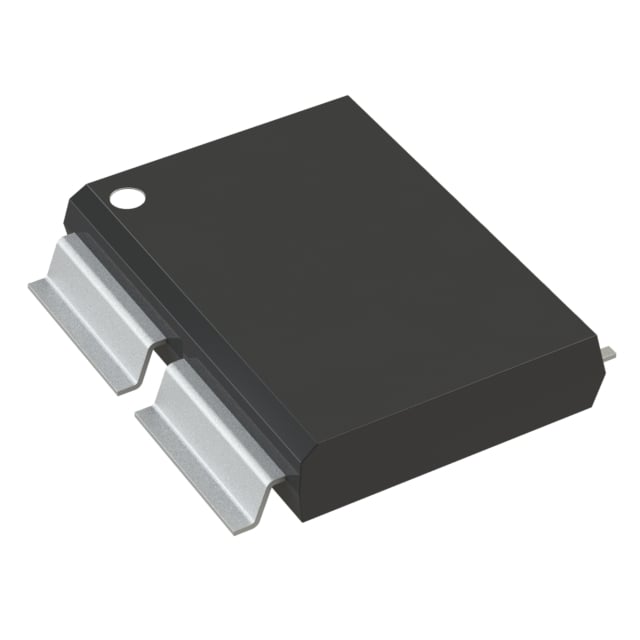

Image shown is a representation only
Manufacturer
Manufacturer No
TMCS1126C5BQDVGR
Quantity
301
Availability
In Stock
Package
10-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
CURRENT SENSOR HE 10-SOIC
Detailed Description
Current Sensor -1.5A ~ 30.5A 1 Channel Hall Effect Bidirectional 10-SOIC (0.295", 7.50mm Width)
Datasheet
Mfr
Texas Instruments
Output
Ratiometric, Voltage
Frequency
DC ~ 550kHz
Linearity
±0.2%
Packaging
Tape & Reel (TR)
Sensitivity
150mV/A
Sensor Type
Hall Effect
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Surface Mount
Response Time
250ns
Package / Case
10-SOIC (0.295", 7.50mm Width)
Voltage - Supply
3V ~ 5.5V
Current - Sensing
-1.5A ~ 30.5A
Number of Channels
1
Operating Temperature
-40°C ~ 125°C
Current - Supply (Max)
80A
Supplier Device Package
10-SOIC
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 550kHz |
| Linearity | ±0.2% |
| Packaging | Tape & Reel (TR) |
| Sensitivity | 150mV/A |
| Sensor Type | Hall Effect |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Surface Mount |
| Response Time | 250ns |
| Package / Case | 10-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 3V ~ 5.5V |
| Current - Sensing | -1.5A ~ 30.5A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply (Max) | 80A |
| Supplier Device Package | 10-SOIC |
