Step1: Product
Texas Instruments TMAG5230D5DYBHR

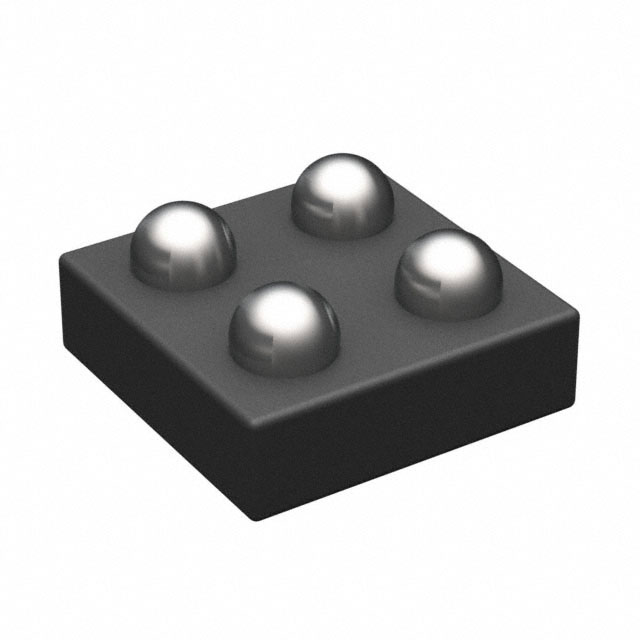

Image shown is a representation only
Manufacturer
Manufacturer No
TMAG5230D5DYBHR
Quantity
1,065
Availability
In Stock
Package
4-XFBGA, DSBGA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
HIGH-PERFORMANCE SMALL-SIZE (WCS
Detailed Description
Digital Switch Unipolar Switch, Dual Push-Pull Hall Effect 4-DSBGA
Datasheet
Mfr
Texas Instruments
Features
Sleep Mode
Function
Unipolar Switch, Dual
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Hall Effect
Output Type
Push-Pull
Polarization
North Pole, South Pole
Mounting Type
Surface Mount
Sensing Range
±3.2mT Trip, ±2.7mT Release
Package / Case
4-XFBGA, DSBGA
Test Condition
-40°C ~ 125°C
Voltage - Supply
1.65V ~ 5.5V
Operating Temperature
-40°C ~ 125°C
Current - Output (Max)
5mA
Current - Supply (Max)
3.3µA
Supplier Device Package
4-DSBGA
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Features | Sleep Mode |
| Function | Unipolar Switch, Dual |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Hall Effect |
| Output Type | Push-Pull |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Sensing Range | ±3.2mT Trip, ±2.7mT Release |
| Package / Case | 4-XFBGA, DSBGA |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Current - Output (Max) | 5mA |
| Current - Supply (Max) | 3.3µA |
| Supplier Device Package | 4-DSBGA |
