Step1: Product

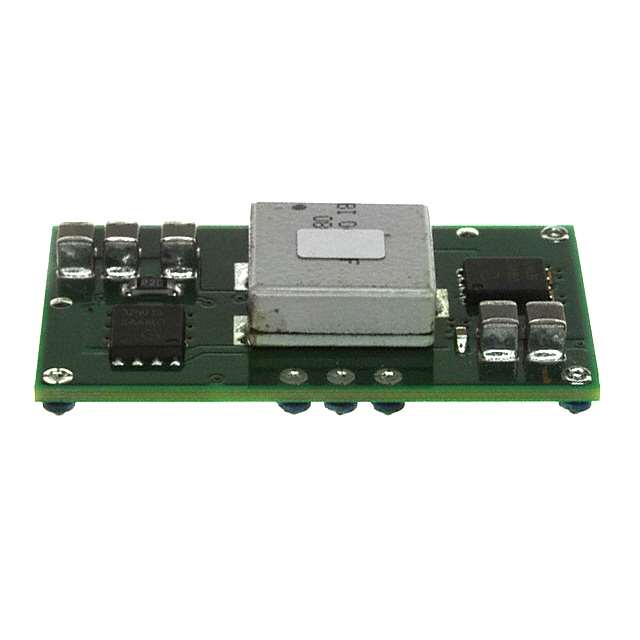

Texas Instruments PTH03020WAZ
Image shown is a representation only
Manufacturer
Manufacturer No
PTH03020WAZ
Package
10-SMD Module
Packaging
Tray
Description
DC DC CONVERTER 0.8-2.5V 55W
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 22A 2.95V - 3.65V Input
Datasheet
Mfr
Texas Instruments
Type
Non-Isolated PoL Module
Series
PTH03020W
Features
Remote On/Off, OCP, OTP, UVLO
Packaging
Tray
Efficiency
95%
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
10-SMD Module
Size / Dimension
1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm)
Number of Outputs
1
Voltage - Output 1
0.8 ~ 2.5V
Base Product Number
PTH03020
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
3.65V
Voltage - Input (Min)
2.95V
Current - Output (Max)
22A
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Type | Non-Isolated PoL Module |
| Series | PTH03020W |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Packaging | Tray |
| Efficiency | 95% |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.8 ~ 2.5V |
| Base Product Number | PTH03020 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 3.65V |
| Voltage - Input (Min) | 2.95V |
| Current - Output (Max) | 22A |
