Step1: Product

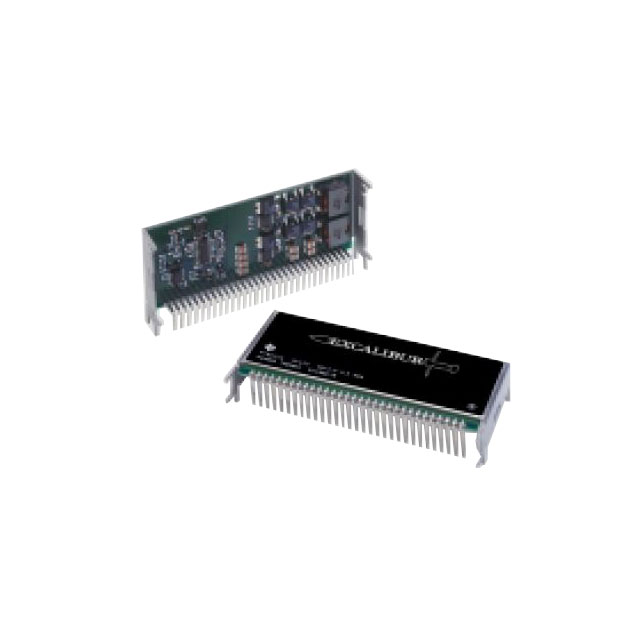

Texas Instruments PT8101A
Image shown is a representation only
Manufacturer
Manufacturer No
PT8101A
Package
31-SIP Module
Packaging
Tray
Description
DC DC CONVERTER 1.3-2.7V 40A
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 1.3 ~ 2.7V 40A 4.5V - 5.5V Input
DataSheet
Mfr
Texas Instruments
Type
Non-Isolated PoL Module
Series
Excalibur™ PT8100
Packaging
Tray
Efficiency
89%
Part Status
Obsolete
Applications
ITE (Commercial)
Mounting Type
Through Hole, Right Angle
Package / Case
31-SIP Module
Number of Outputs
1
Voltage - Output 1
1.3 ~ 2.7V
Base Product Number
PT81
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
40A
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Type | Non-Isolated PoL Module |
| Series | Excalibur™ PT8100 |
| Packaging | Tray |
| Efficiency | 89% |
| Part Status | Obsolete |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | 31-SIP Module |
| Number of Outputs | 1 |
| Voltage - Output 1 | 1.3 ~ 2.7V |
| Base Product Number | PT81 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 40A |
