Step1: Product

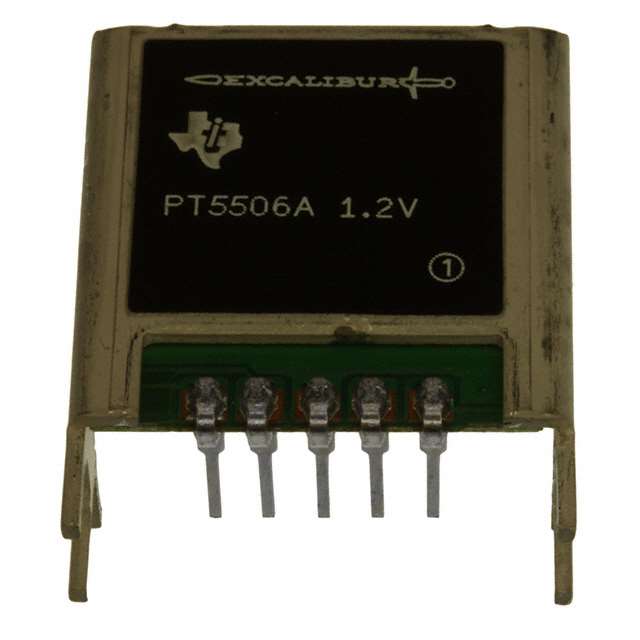

Texas Instruments PT5506A
Image shown is a representation only
Manufacturer
Manufacturer No
PT5506A
Package
5-SIP Module
Packaging
Tray
Description
DC DC CONVERTER 1.2V
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 1.2V 3A 3.1V - 5.5V Input
Datasheet
Mfr
Texas Instruments
Type
Non-Isolated PoL Module
Series
Excalibur™ PT5500
Packaging
Tray
Efficiency
79%
Applications
ITE (Commercial)
Mounting Type
Through Hole, Right Angle
Package / Case
5-SIP Module
Number of Outputs
1
Voltage - Output 1
1.2V
Base Product Number
PT5506
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
3.1V
Current - Output (Max)
3A
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Type | Non-Isolated PoL Module |
| Series | Excalibur™ PT5500 |
| Packaging | Tray |
| Efficiency | 79% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | 5-SIP Module |
| Number of Outputs | 1 |
| Voltage - Output 1 | 1.2V |
| Base Product Number | PT5506 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 3.1V |
| Current - Output (Max) | 3A |
