Step1: Product
Texas Instruments MUX808QPWRQ1

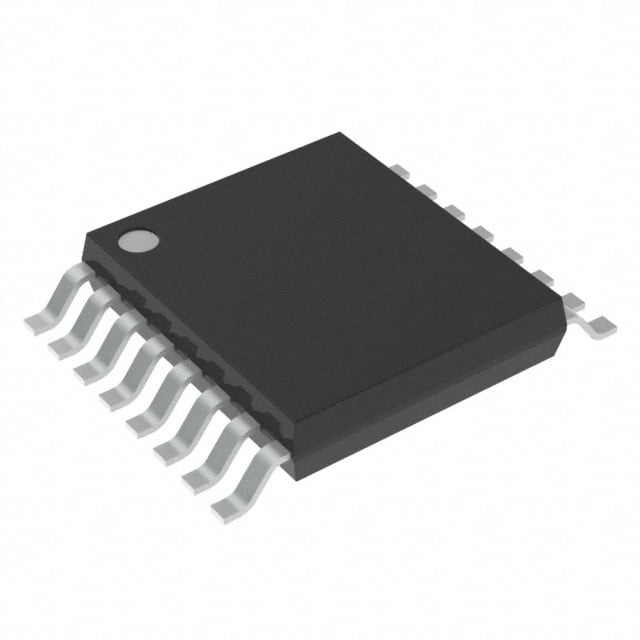

Image shown is a representation only
Manufacturer
Manufacturer No
MUX808QPWRQ1
Package
16-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
AUTOMOTIVE, 100V, 8:1 MULTIPLEXE
Detailed Description
1 Circuit IC Switch 8:1 48Ohm 16-TSSOP
Datasheet
Grade
Automotive
Crosstalk
-110dB @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Qualification
AEC-Q100
-3db Bandwidth
200MHz
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Switch Circuit
SP8T - Open
Charge Injection
-150pC
Number of Circuits
1
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
16-TSSOP
On-State Resistance (Max)
48Ohm
Voltage - Supply, Dual (V±)
±10V ~ 50V
Switch Time (Ton, Toff) (Max)
3µs, 650ns (Typ)
Voltage - Supply, Single (V+)
10V ~ 100V
Current - Leakage (IS(off)) (Max)
1µA
Multiplexer/Demultiplexer Circuit
8:1
Channel-to-Channel Matching (ΔRon)
650mOhm
Channel Capacitance (CS(off), CD(off))
3pF, 20pF
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Crosstalk | -110dB @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| -3db Bandwidth | 200MHz |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Switch Circuit | SP8T - Open |
| Charge Injection | -150pC |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 16-TSSOP |
| On-State Resistance (Max) | 48Ohm |
| Voltage - Supply, Dual (V±) | ±10V ~ 50V |
| Switch Time (Ton, Toff) (Max) | 3µs, 650ns (Typ) |
| Voltage - Supply, Single (V+) | 10V ~ 100V |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ΔRon) | 650mOhm |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 20pF |
