Texas Instruments LM76002RNPT

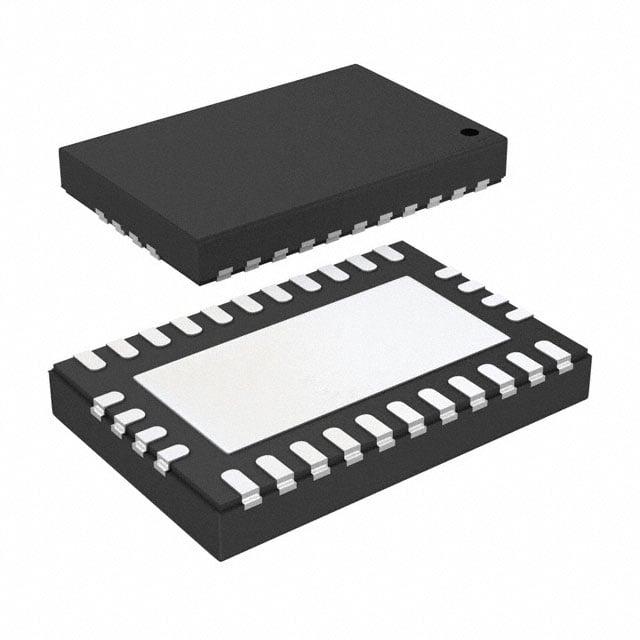

Image shown is a representation only
Manufacturer
Manufacturer No
LM76002RNPT
Package
30-WFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC REG BUCK ADJ 2.5A 30WQFN
Detailed Description
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 2.5A 30-WFQFN Exposed Pad
DataSheet
Mfr
Texas Instruments
Function
Step-Down
Topology
Buck
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Adjustable
Part Status
Active
Mounting Type
Surface Mount, Wettable Flank
Package / Case
30-WFQFN Exposed Pad
Current - Output
2.5A
Number of Outputs
1
Base Product Number
LM76002
Output Configuration
Positive
Frequency - Switching
300kHz ~ 2.2MHz
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
Yes
Voltage - Input (Max)
60V
Voltage - Input (Min)
3.5V
Voltage - Output (Max)
57V
Supplier Device Package
30-WQFN (6x4)
Voltage - Output (Min/Fixed)
1V
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Function | Step-Down |
| Topology | Buck |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Adjustable |
| Part Status | Active |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 30-WFQFN Exposed Pad |
| Current - Output | 2.5A |
| Number of Outputs | 1 |
| Base Product Number | LM76002 |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 2.2MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | Yes |
| Voltage - Input (Max) | 60V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Max) | 57V |
| Supplier Device Package | 30-WQFN (6x4) |
| Voltage - Output (Min/Fixed) | 1V |
