Step1: Product
Texas Instruments LM5109BSD/NOPB

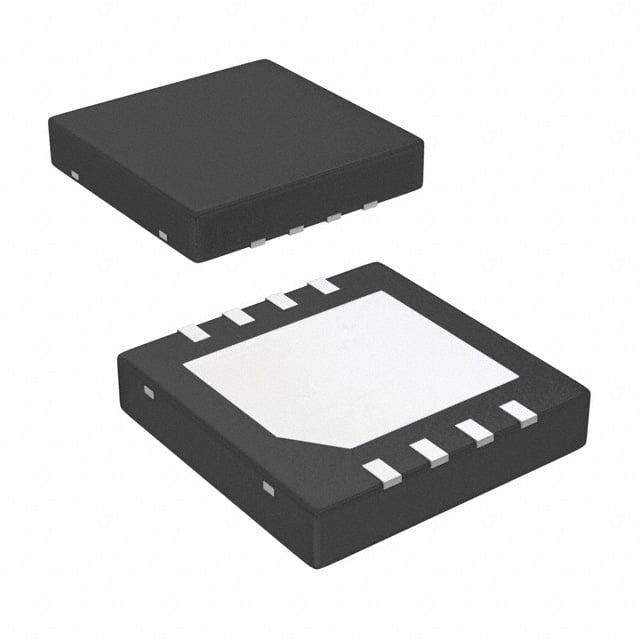

Image shown is a representation only
Manufacturer
Manufacturer No
LM5109BSD/NOPB
Quantity
478
Availability
In Stock
Package
8-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR HALF-BRIDGE 8WSON
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 8-WSON (4x4)
DataSheet
Gate Type
MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Package / Case
8-WDFN Exposed Pad
Voltage - Supply
8V ~ 14V
Number of Drivers
2
Base Product Number
LM5109
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
15ns, 15ns
Supplier Device Package
8-WSON (4x4)
Logic Voltage - VIL, VIH
0.8V, 2.2V
High Side Voltage - Max (Bootstrap)
108 V
Current - Peak Output (Source, Sink)
1A, 1A
| Attribute | Value |
|---|---|
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Voltage - Supply | 8V ~ 14V |
| Number of Drivers | 2 |
| Base Product Number | LM5109 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Supplier Device Package | 8-WSON (4x4) |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| High Side Voltage - Max (Bootstrap) | 108 V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
